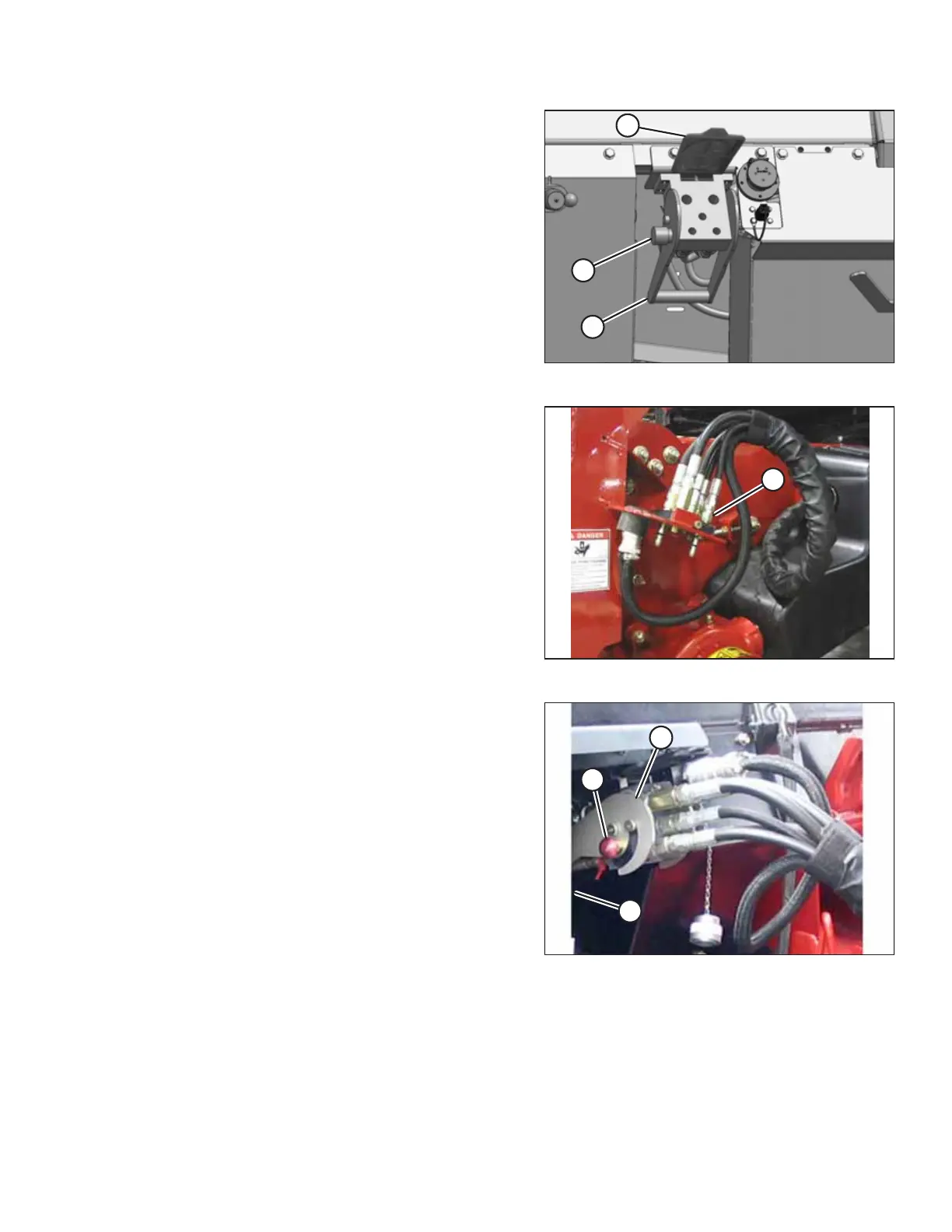

Figure 5.4: Adapter Receptacle
8. Open receptacle cover (A) on the adapter.
9. Press lock button (B) and pull handle (C) to the fully
open position.
10. Clean the receptacle mating surfaces.
1001436
A
Figure 5.5: Combine Connectors
11. Remove hydraulic quick coupler (A) from the combine and
clean the mating surfaces.
1005878
A
C
B
Figure 5.6: Hydraulic Connection
12. Position coupler onto adapter receptacle (A) and push
handle (B) to engage the multicoupler pins into the
receptacle.
13. Push handle (B) to the closed position until lock button (C)
snaps out.
