214323 292 Revision B

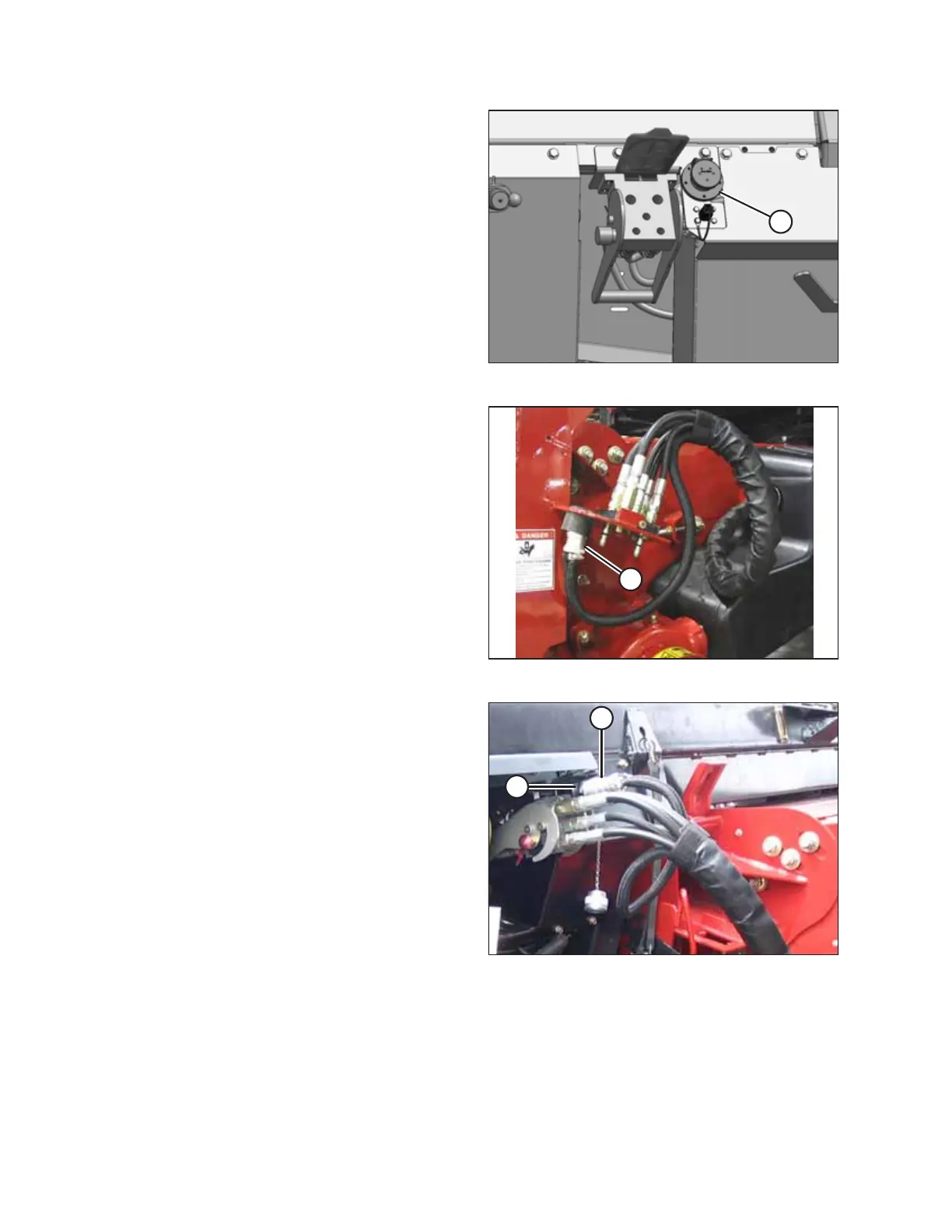

Figure 5.7: Electrical Receptacle
14. Remove the cover from electrical receptacle (A). Ensure the
receptacle is clean and has no signs of damage.
Figure 5.8: Combine Connectors
15. Remove electrical connector (A) from the storage cup on
the combine, and route it to the adapter receptacle.
Figure 5.9: Electrical Connection
16. Align lugs on connector (A) with the slots in receptacle (B),
push connector onto the receptacle, and turn the collar on
the connector to lock it in place.
HEADER ATTACHMENT/DETACHMENT
