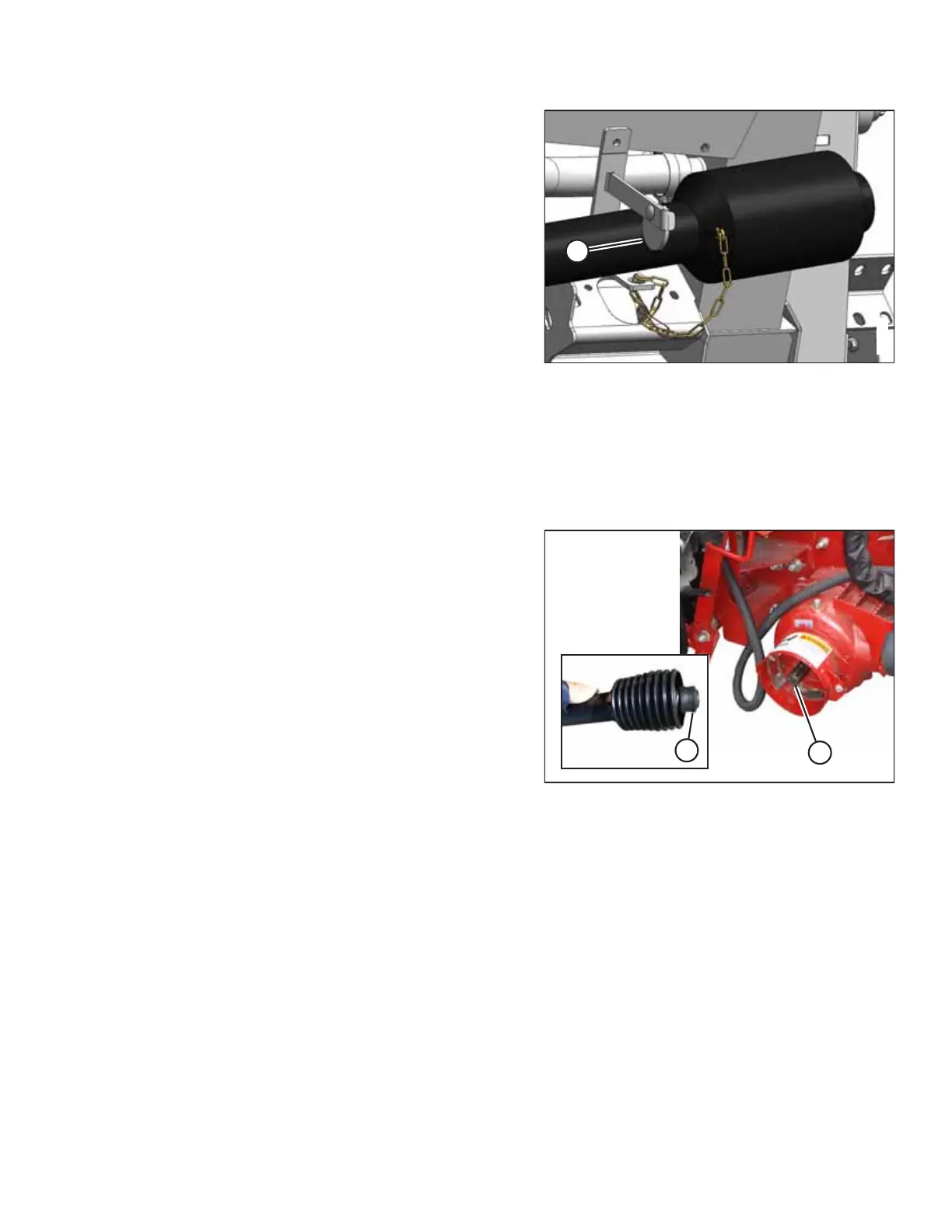

Figure 5.10: Driveline Storage Hook
17. Rotate disc (A) on the adapter driveline storage hook, and
remove the driveline from the hook.
18. Check that the splines on the driveline match the splines on the combine feeder house output shaft.
NOTE:
Model year 2017 and newer CNH combines have a 21-spline output shaft, older combines have a 6-spline output shaft.
If the number of splines on the driveline does not match the number of splines on the combine feederhouse, contact
your MacDon Dealer now.
Figure 5.11: Combine Output Shaft
19. Pull back collar (A) on end of driveline and push the
driveline onto combine output shaft (B) until the
collar locks.
HEADER ATTACHMENT/DETACHMENT
