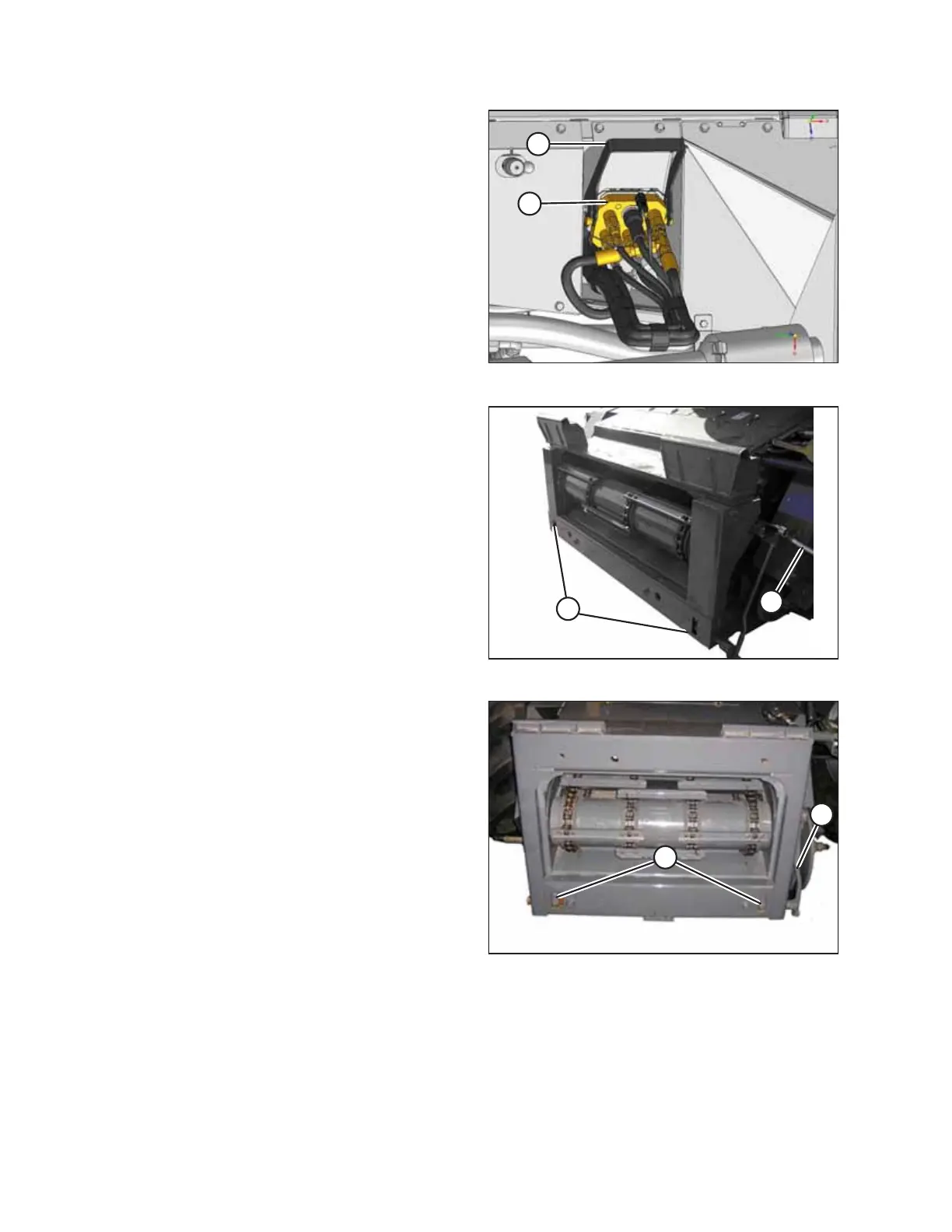

Figure 5.35: Adapter Multicoupler
8. Raise handle (A) on the adapter, and place the
multicoupler (B) on the adapter receptacle.
9. Lower handle (A) to lock the multicoupler.
Figure 5.36: Challenger and Massey Ferguson
Figure 5.37: Gleaner R and S Series
10. Use lock handle (B) to retract lugs (A) at the base of the
feeder house.
HEADER ATTACHMENT/DETACHMENT
