214323 307 Revision B

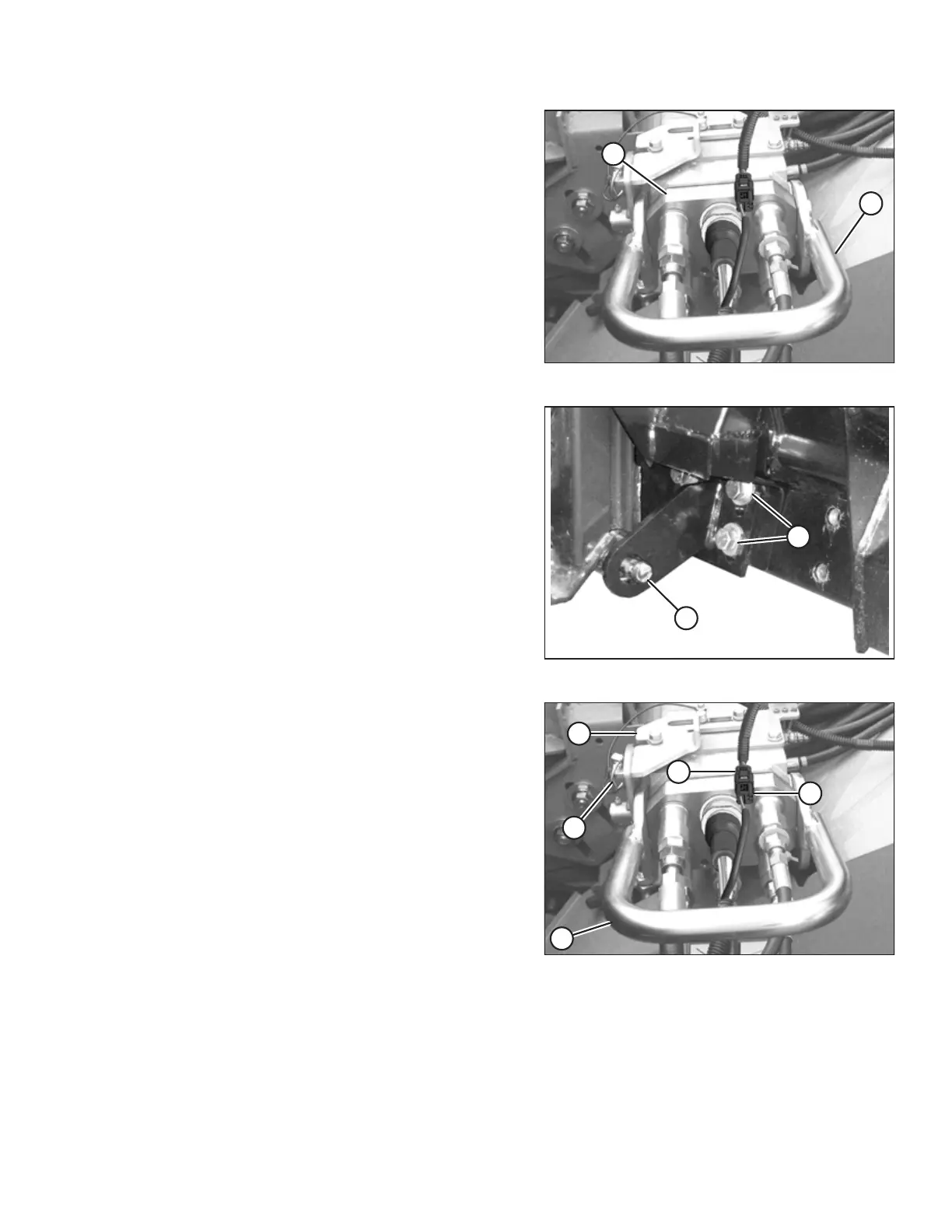

Figure 5.41: Multicoupler
6. Place multicoupler (A) onto the receptacle, and pull
handle (B) to engage the lugs on the multicoupler into
the handle.
7. Pull handle (B) to the horizontal position and ensure
multicoupler (A) is fully engaged into the receptacle.
Figure 5.42: Feeder House Pin
8. Ensure that both feeder house pins (A) are fully engaged
into the adapter brackets.
NOTE:
If pins (A) do not fully engage the adapter brackets, loosen
bolts (B) and adjust the bracket as needed.
9. Tighten bolts (B).
Figure 5.43: Multicoupler
10. Slide latch (A) to lock handle (B) and secure it with lynch
pin (C).
11. Connect harness (D) to combine connector (E).
HEADER ATTACHMENT/DETACHMENT
