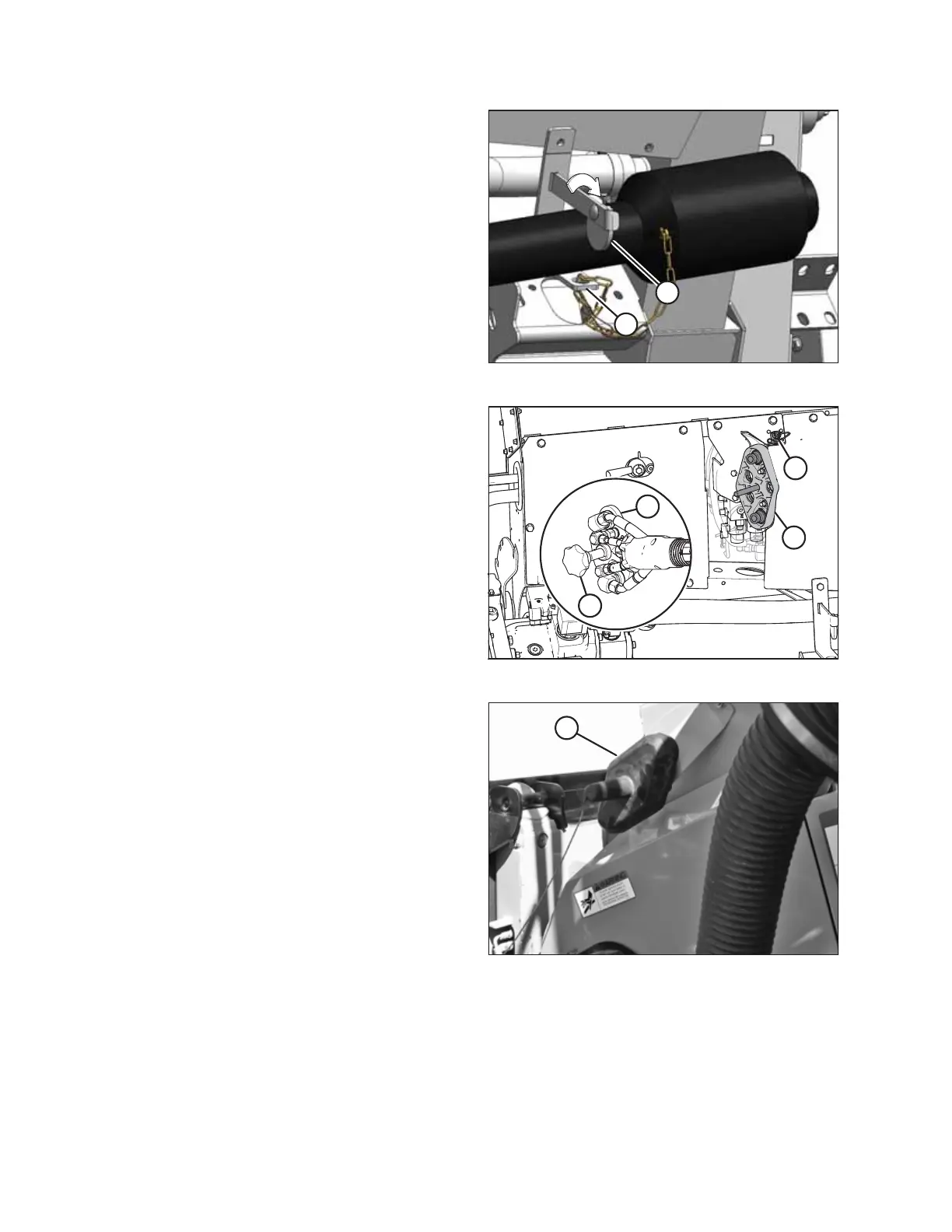

Figure 5.67: Driveline
5. Slide the driveline into hook (A) until disc (B) drops.
1022912
A
B
C
D
Figure 5.68: Coupler
6. Remove the electrical connector from adapter
receptacle (A).
7. Unscrew knob (B) on coupler (C) to release the coupler
from adapter receptacle (D).
1001139
A
Figure 5.69: Cover
8. Remove cover (A) from the combine receptacle.
