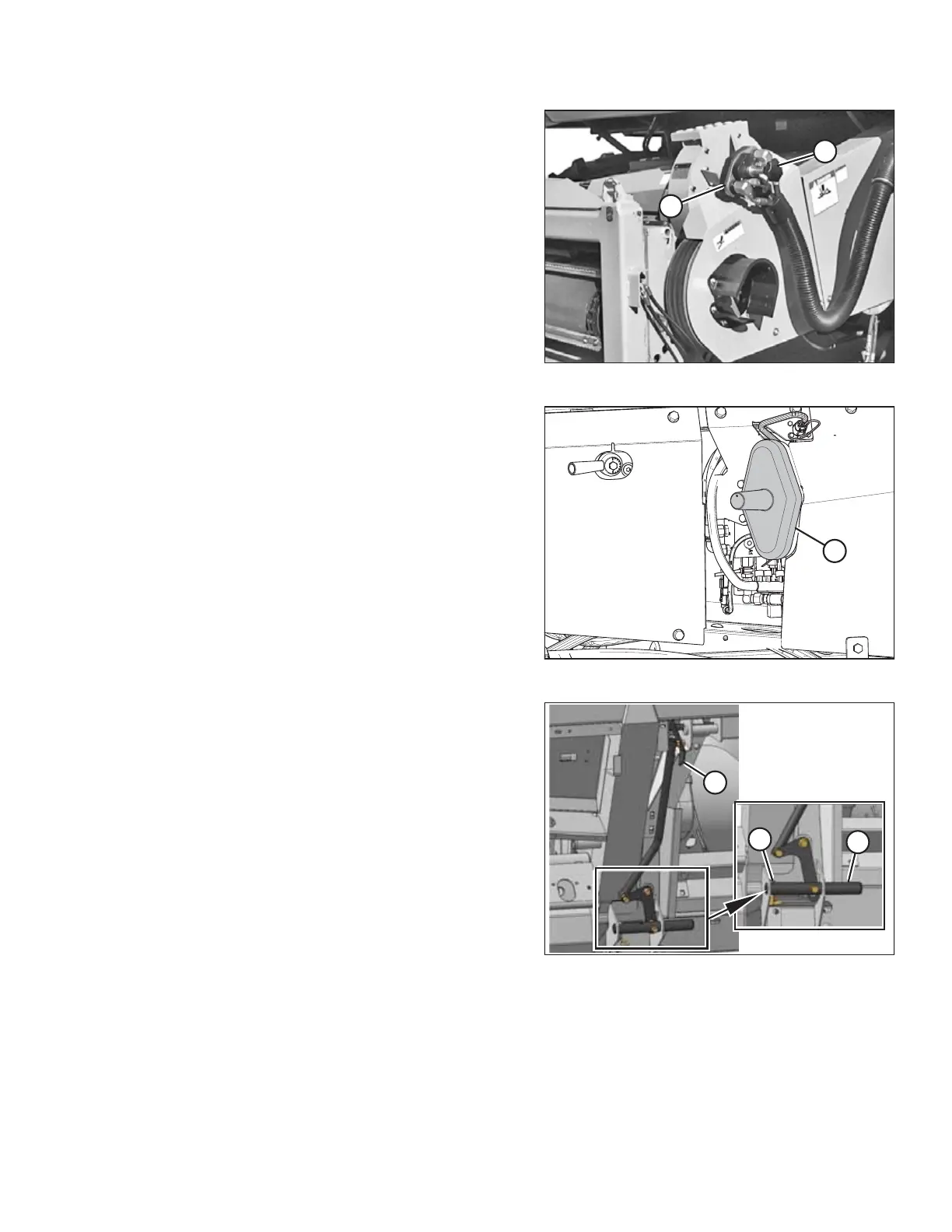

Figure 5.70: Combine Coupler
9. Place coupler (B) onto the combine receptacle, and turn
knob (A) to secure the coupler to the receptacle.
1022904
A
Figure 5.71: Adapter Receptacle Cover
10. Place cover (A) on the adapter receptacle.
1001536
A
B
C
Figure 5.72: Feeder House Locks
11. Remove locking pin (C) from adapter pin (B).
12. Raise handle (A) to disengage adapter pin (B) from the
feeder house.
