214323 339 Revision B

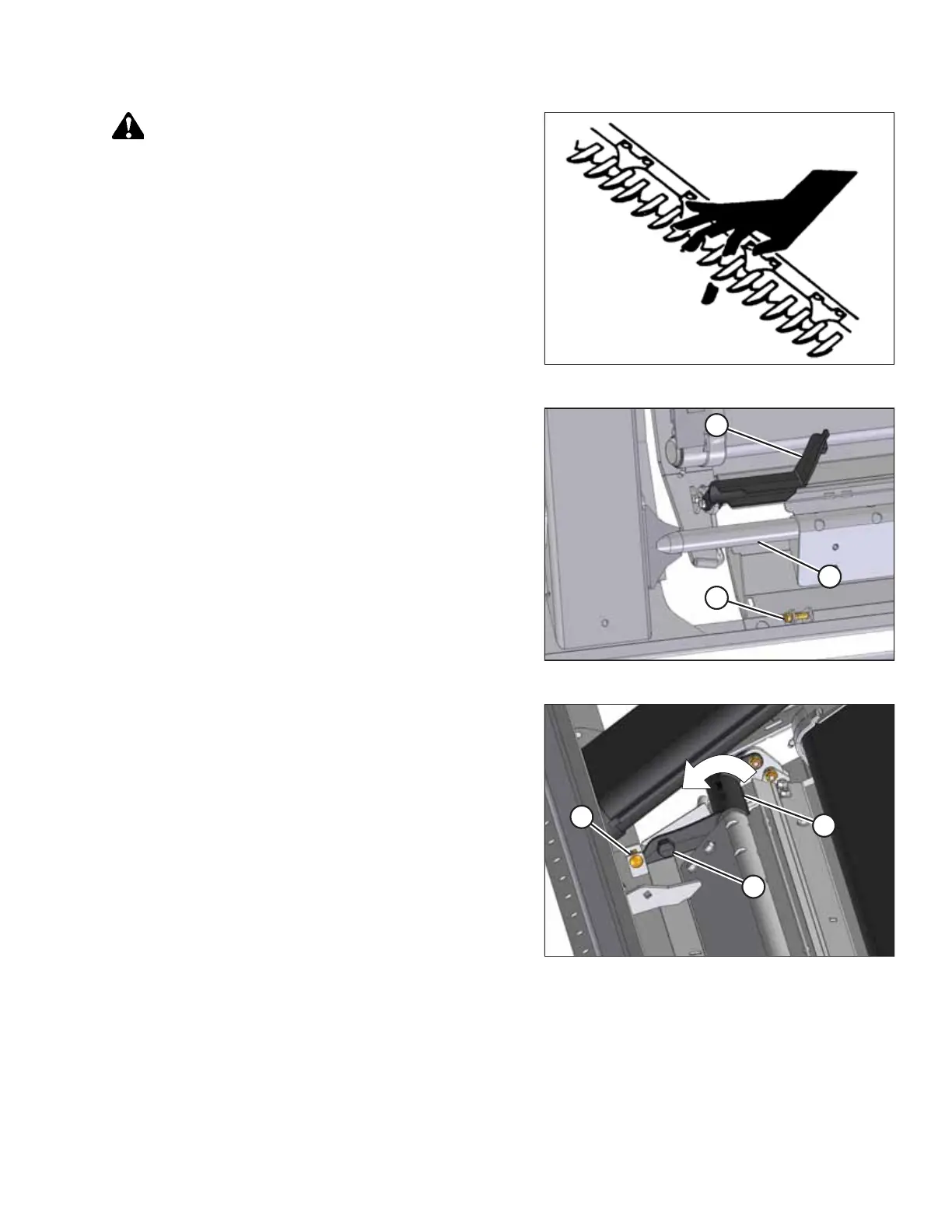

Figure 5.118: Cutterbar Hazard
WARNING
Keep your hands clear of the area between the guards and the
knife.
Figure 5.119: Adapter Latch
27. Remove bolt (A) from both sides of the opening to allow
the attachment of the adapter deck.
28. Rotate latch (B) forward and down to engage transition pan
tube (C).
Figure 5.120: Adapter Latch
29. Use a 24 mm (15/16 in.) wrench on hex bolt (B) to rotate
latch (A) downwards and slightly raise the feed deck. Install
bolt (C) to lock the latch position.
30. Repeat for the opposite side of the feed draper deck.
HEADER ATTACHMENT/DETACHMENT
