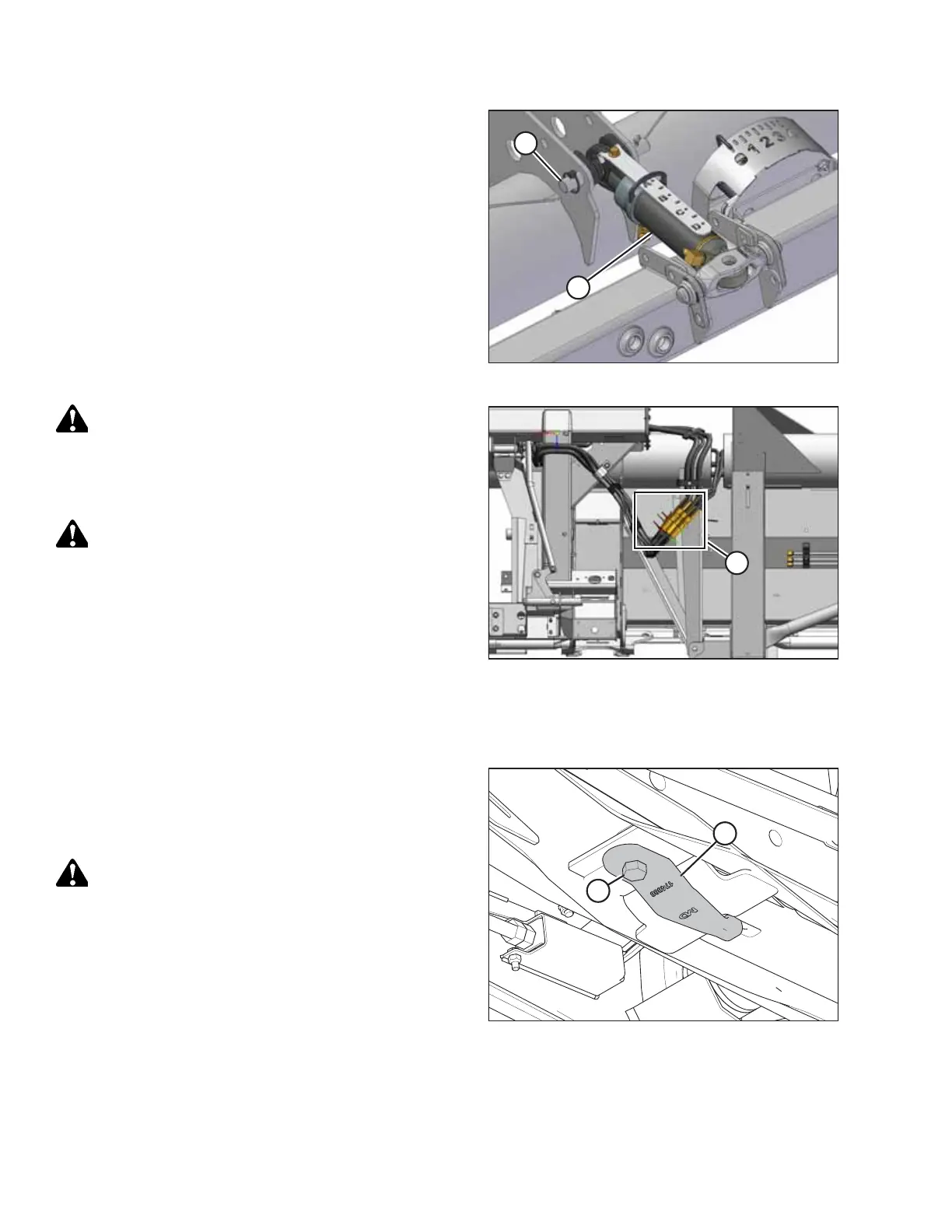

Figure 5.115: Center-Link
14. Connect the center-link as follows:
a. Pull pin (B) out of the bracket, and remove the prop
from under center-link (A).
b. Install pin (B) through center-link (A) bracket, and
secure with the lynch pin.
Figure 5.116: Reel Hydraulics
CAUTION
Always connect center-link before fully raising header.
15. Match the colored cable ties and connect reel hydraulics (A)
at the right end of the adapter.
DANGER
Ensure that all bystanders have cleared the area.
16. Start the engine and slowly raise the adapter while making
sure the adapter legs engage the header legs.
17. Raise the header to its full height.
18. Shut down the engine, and remove the key from the
ignition.
19. Engage the header safety props on the combine. For
instructions, refer to the combine operator’s manual.
Figure 5.117: Adapter Underside
20. Engage the adapter arm by loosening nut and bolt (A), and
reposition hook (B) as shown. Tighten bolt and nut (A).
21. Remove the lift cylinder locks.
DANGER
Ensure that all bystanders have cleared the area.
22. Start the engine, and lower the header to the ground.
23. Adjust the header angle to the shallowest setting (shortest
center-link).
24. Raise the reel to its full height.
25. Shut down the engine, and remove the key from the
ignition.
26. Engage the reel safety props. For instructions, refer to
Engaging Reel Safety Props, page 31.
