MacDon FlexDraper FD75 - Page 355

214323 337 Revision B
1001556
A
C
B

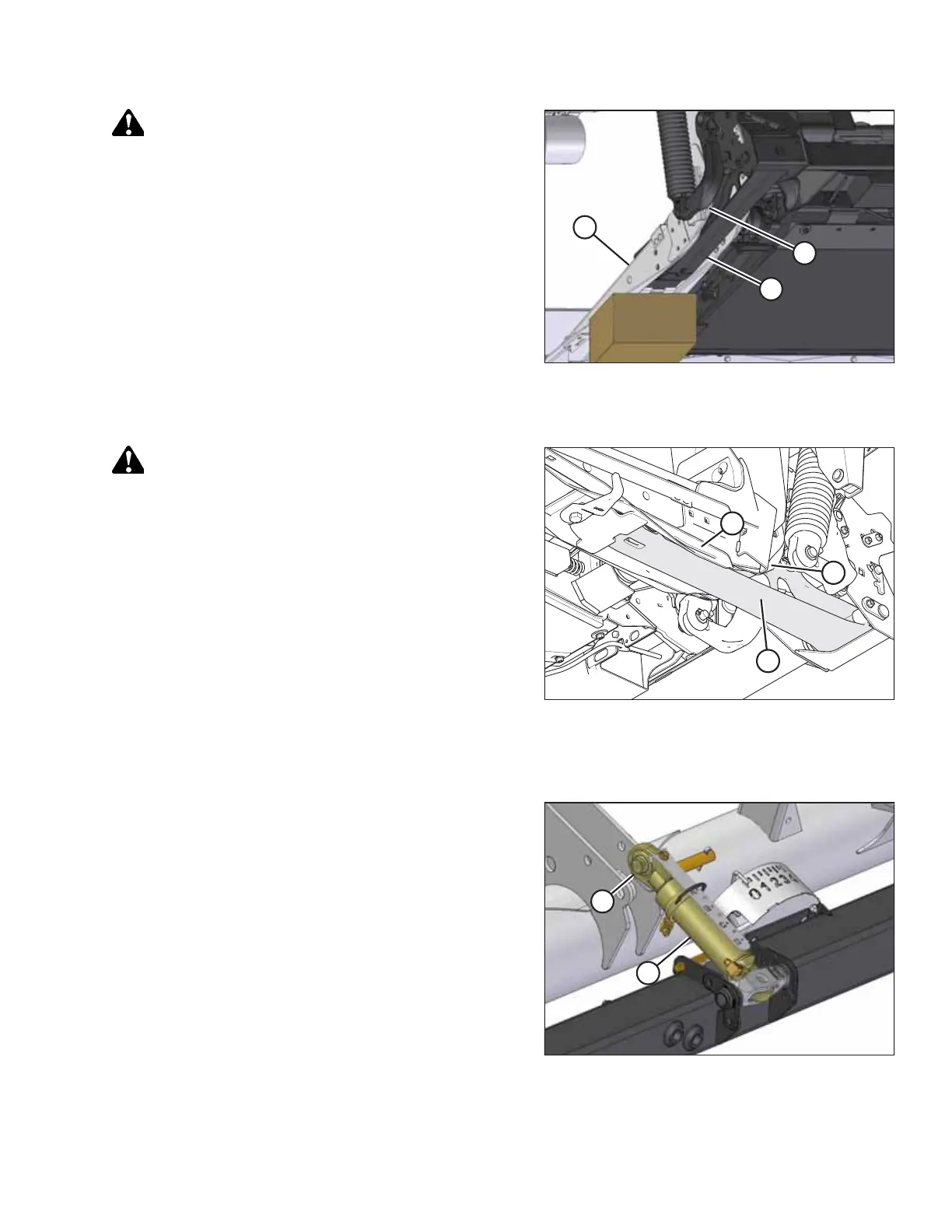

Figure 5.112: Adapter Underside
DANGER
Ensure that all bystanders have cleared the area.
4. Start the engine, and lower the combine feeder house so
the adapter arms (A) are aligned with header legs (B).
5. Drive slowly forward while maintaining alignment between
adapter arms (A) and the header legs (B).
6. Keep adapter arms (A) just under header legs (B) to ensure
the adapter legs seat properly in the header linkage
supports at location (C).
IMPORTANT:
Keep the hydraulic hoses clear to prevent damage to them.
7. Drive slowly forward until adapter arms (A) contact the
stops in the legs (C).
1004601
A
B
C
Figure 5.113: Adapter Underside
DANGER
Ensure that all bystanders have cleared the area.
8. Start the engine, and lower the combine feeder house so
that adapter arms (B) are aligned with header balance
channels (B).
9. Drive slowly forward, maintaining the alignment between
adapter arms (A) and header balance channels (B).
10. Keep adapter arms (A) just under the balance channels (B)
to ensure that the adapter legs seat in the header linkage
supports at location (C).
IMPORTANT:
Keep the hydraulic hoses clear to prevent damage to them.
11. Continue forward until adapter arms (A) contact stops in
balance channels (B).
1001554
A
B
Figure 5.114: Center-Link
12. Adjust the length of center-link (A) using the header angle
hydraulics to align center-link eye (B) with the hole in the
header bracket.
13. Shut down the engine, and remove the key from the
ignition.
HEADER ATTACHMENT/DETACHMENT
