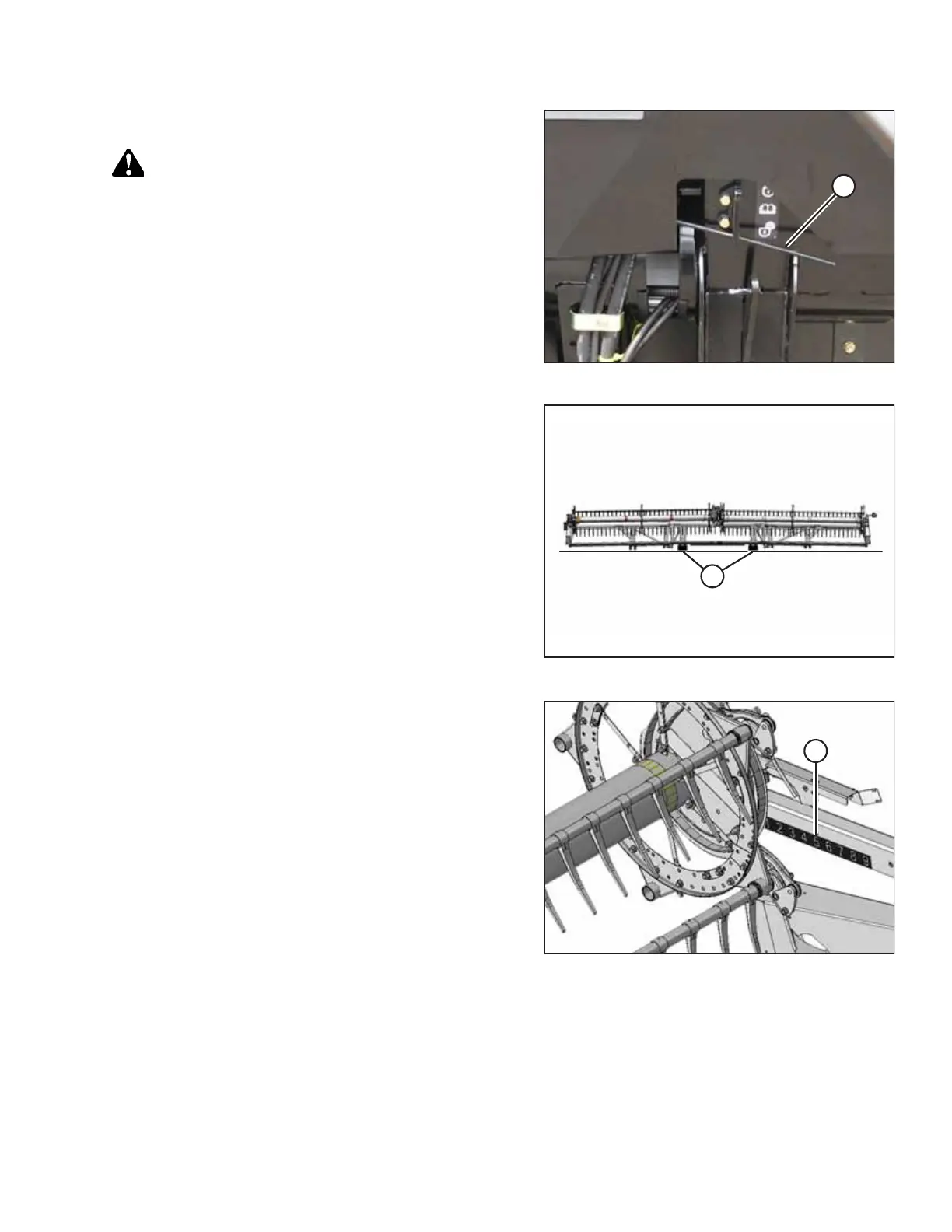

Figure 6.230: Wing Unlocked
4. Move spring handles (A) down to (UNLOCK) position.
DANGER
Ensure that all bystanders have cleared the area.
5. Start the combine.
Figure 6.231: FlexDraper
®
Block Locations
6. Raise the header and place two 150 mm (6 in.) blocks (A)
under the cutterbar, just inboard of the wing flex points.
7. Lower the header fully, allowing it to flex into full
frown mode.
Figure 6.232: Fore-Aft Position
8. Set the fore-aft position to middle position 5 on fore-aft
position indicator decal (A).
9. Lower the reel fully.
10. Shut down the engine, and remove the key from
the ignition.
