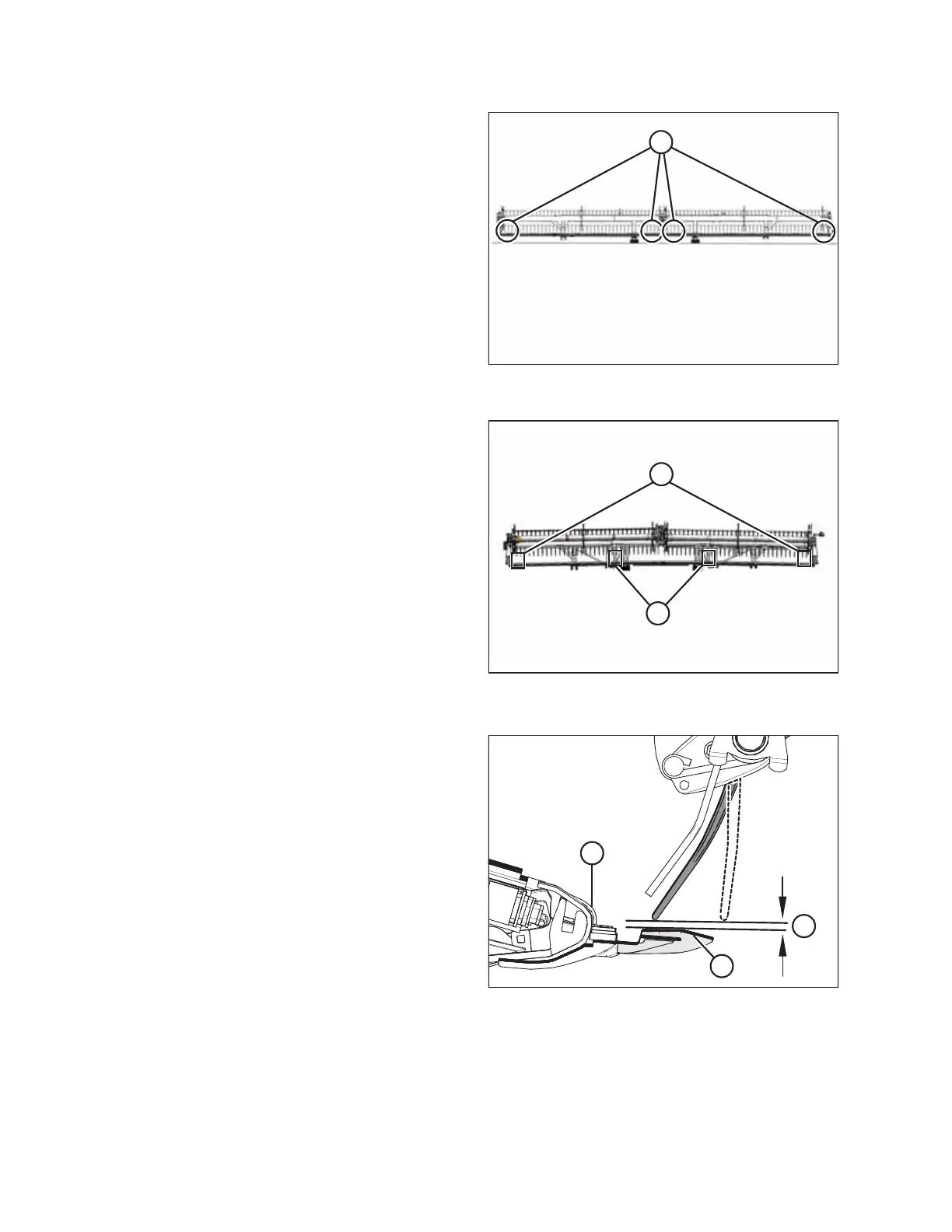

Figure 6.233: Double-Reel Header
Figure 6.234: Measurement Locations
A - Clearance Points B - Flex Points
11. Measure clearance at ends (A) of each reel and at flex
locations (B).
NOTE:
The reel is factory-set to provide more clearance at center
of reel than at ends (frown) to compensate for reel flexing.
Figure 6.235: Reel Clearance
12. Check finger clearance (X) when positioned between
locations (C) and (D). Depending on the reel fore-aft
position, the minimum clearance can result at the guard
tine, hold-down, or cutterbar. For finger clearance
measurements, refer to Table 6.2, page 464.
13. Adjust the reel if necessary. For instructions, refer to
Adjusting Reel Clearance, page 467.
