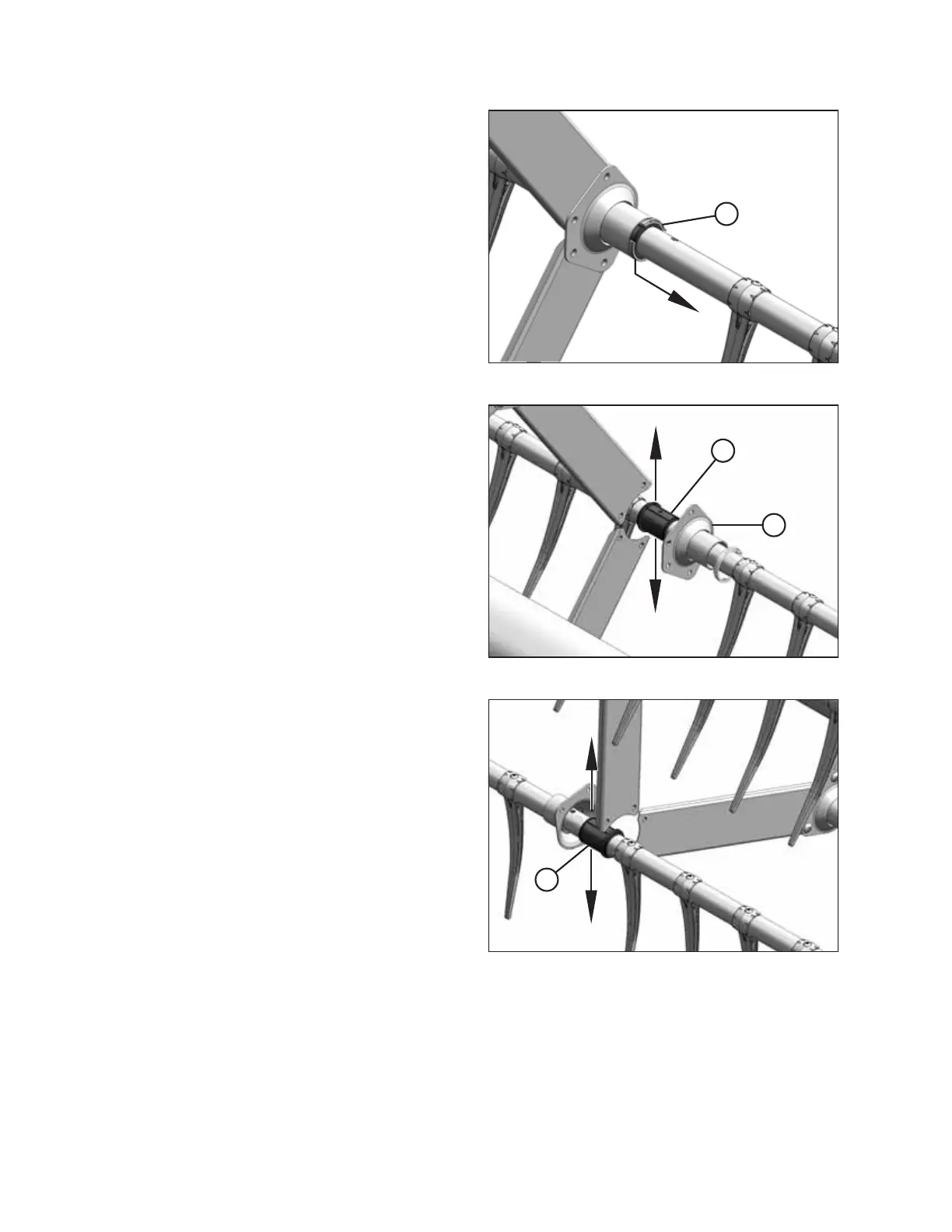

Figure 6.259: Bushing Clamp
22. Move clamps (A) off the bushings.
Figure 6.260: Support
23. Slide support (A) off bushing halves (B).
NOTE:
Two tine tubes have opposite-facing supports. Rotate the
supports until the flanges clear the channels before moving
them off bushing (B). Move the tine tube outward slightly if
necessary.
24. Remove bushing halves (B).
Figure 6.261: Opposite Support
