214323 477 Revision B

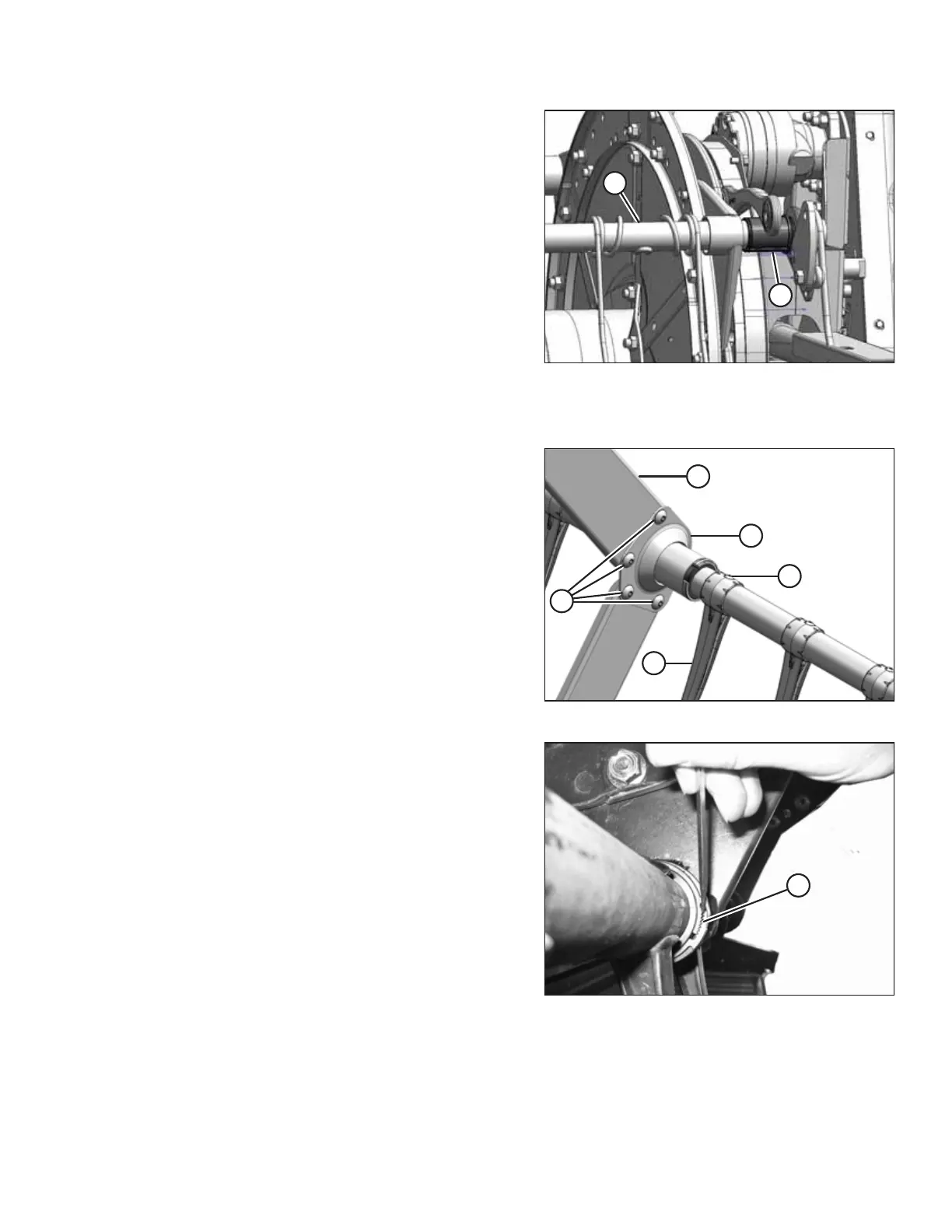

Figure 6.256: Cam End
16. Slide tine tube (A) outboard to expose bushing (B).
17. Remove bushing halves (B). If required, remove the next
tine or plastic finger so the arm can slide off the bushing.
Refer to the following procedures if necessary:
• Removing Plastic Fingers, page 471
• Removing Steel Tines, page 469
Removing tine tube support bushings (if installed):
Figure 6.257: Tine Tube Support
18. Locate support (A) that requires a new bushing.
19. Remove four bolts (B) securing channels (C) to support (A).
20. If finger (D) is too close to the support to allow access to
the bushing, remove screw (E) and remove finger (D). For
instructions, refer to Removing Plastic Fingers, page 471.
Figure 6.258: Bushing Clamp
21. Release bushing clamps (A) using a small screwdriver to
separate the serrations.
MAINTENANCE AND SERVICING
