MacDon FlexDraper FD75 - Page 498

214323 480 Revision B
1001245
A
B

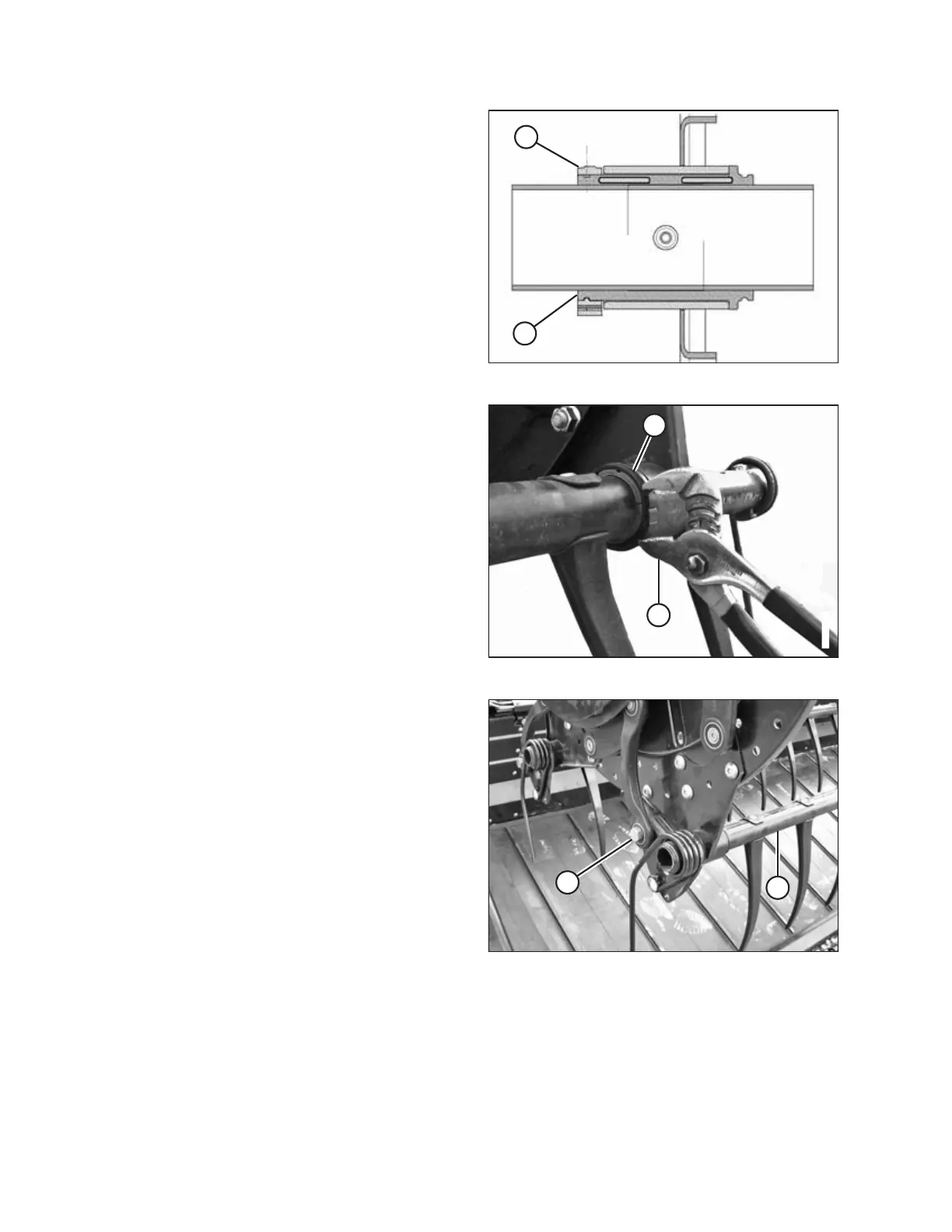

Figure 6.264: Bushing
4. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
5. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
1009869
A
B
Figure 6.265: Clamp on Bushing
6. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening the clamp might break the clamp.
1001202
A
B
Figure 6.266: Cam End
7. Line up tine tube (B) with the cam arm and install bolt (A).
Apply medium-strength threadlocker (Loctite
®
243 or
equivalent) to the bolt, and torque the bolt to
165 Nm (120 lbf ft).
NOTE:
Make sure the shim is between the cam arm and the
reel bat.
MAINTENANCE AND SERVICING
