214323 481 Revision B

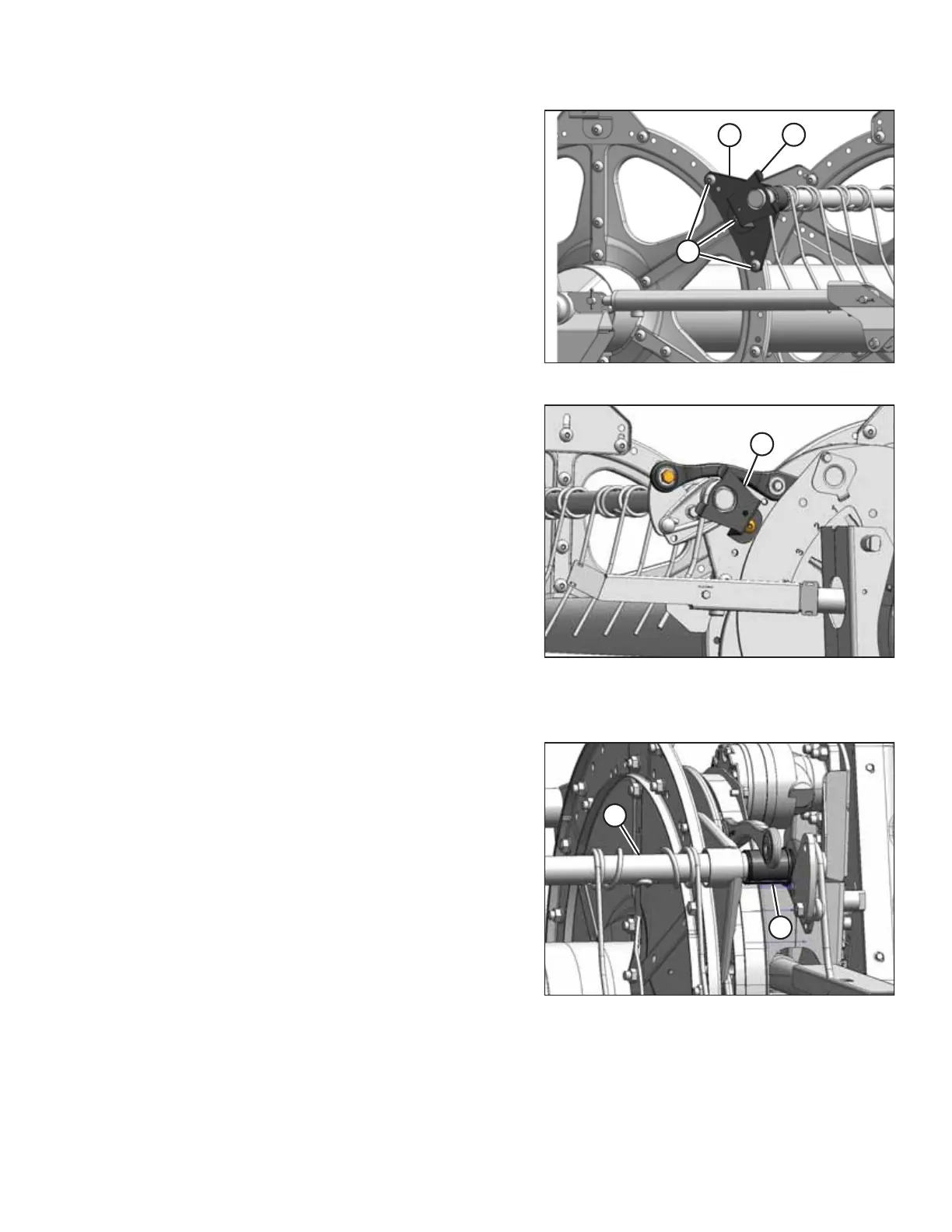

Figure 6.267: Tail End
8. Install bolts (A) securing arm (B) to the center disc.
9. Install reel arm (B) and endshield support (C) to the tail end
of the reel at the applicable tine tube location, and secure
them with bolts (A).
Figure 6.268: Cam End
10. Install endshield support (A) at the applicable tine tube
location at the cam end.
11. Reinstall the reel endshields. For instructions, refer to
6.13.6 Reel Endshields, page 485.
Installing center disc and tail-end bushings:
Figure 6.269: Cam End
12. Position bushing halves (B) on the tine tube with the
flangeless end adjacent to the reel arm, and position the
lug in each bushing half into the hole in tine tube (A).
13. Slide the reel arm onto bushing (B) and position them
against the disc at the original location.
14. Reinstall the previously removed fingers or tines. For
instructions, refer to the following procedures as necessary:
• Removing Plastic Fingers, page 471
• Removing Steel Tines, page 469
MAINTENANCE AND SERVICING
