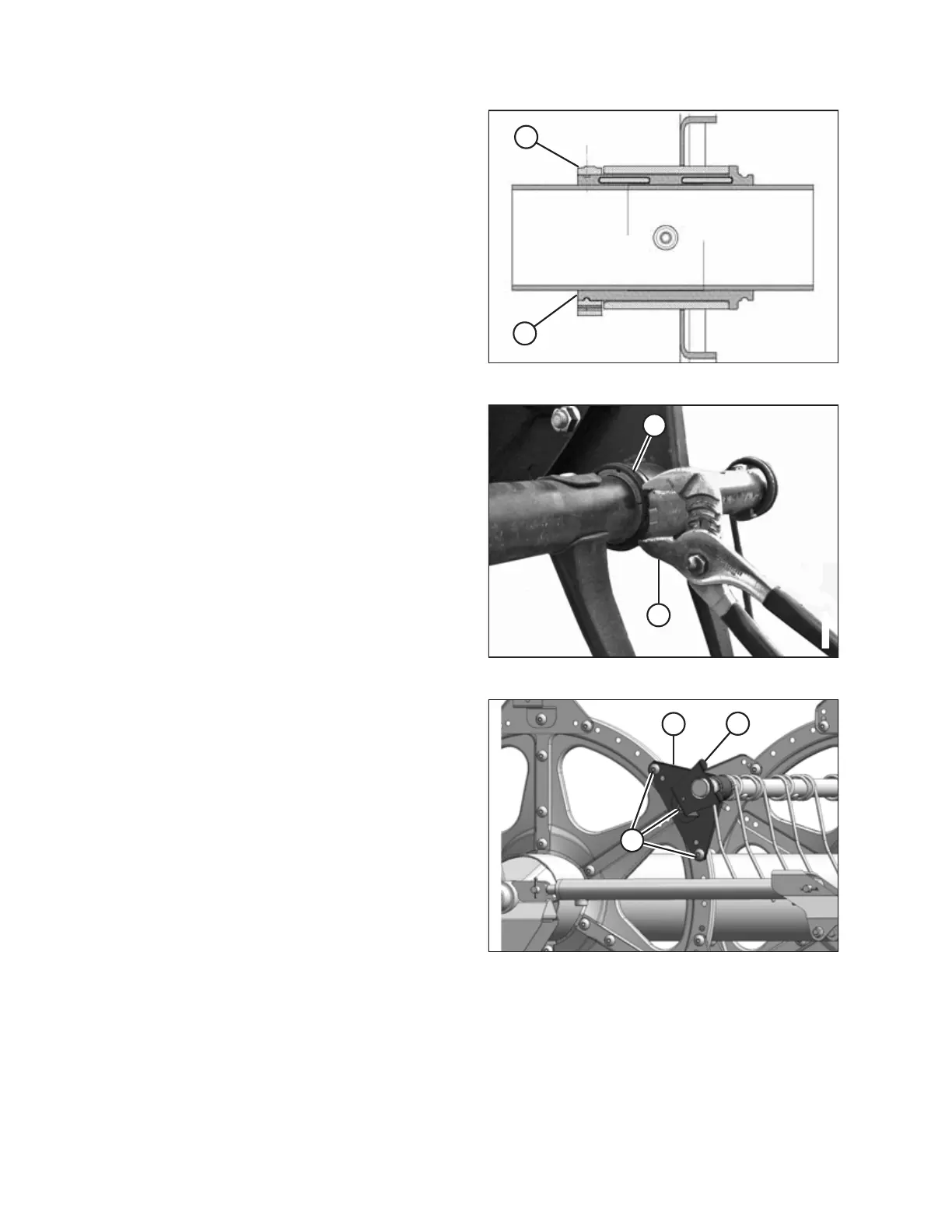

Figure 6.270: Bushing
15. Install bushing clamp (A) onto the tine tube adjacent to the
flangeless end of bushing (B).
16. Position clamp (A) on bushing (B) so the edges of the clamp
and bushing are flush when the clamp is fit into the groove
on the bushing and the lock tabs are engaged.
Figure 6.271: Clamp on Bushing
17. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening the clamp might break the clamp.
Figure 6.272: Tail End
18. Install bolts (A) securing arm (B) to the center disc.
19. Install reel arm (B) and endshield support (C) to the tail end
of the reel at the applicable tine tube location, and secure
them with bolts (A).
MAINTENANCE AND SERVICING
