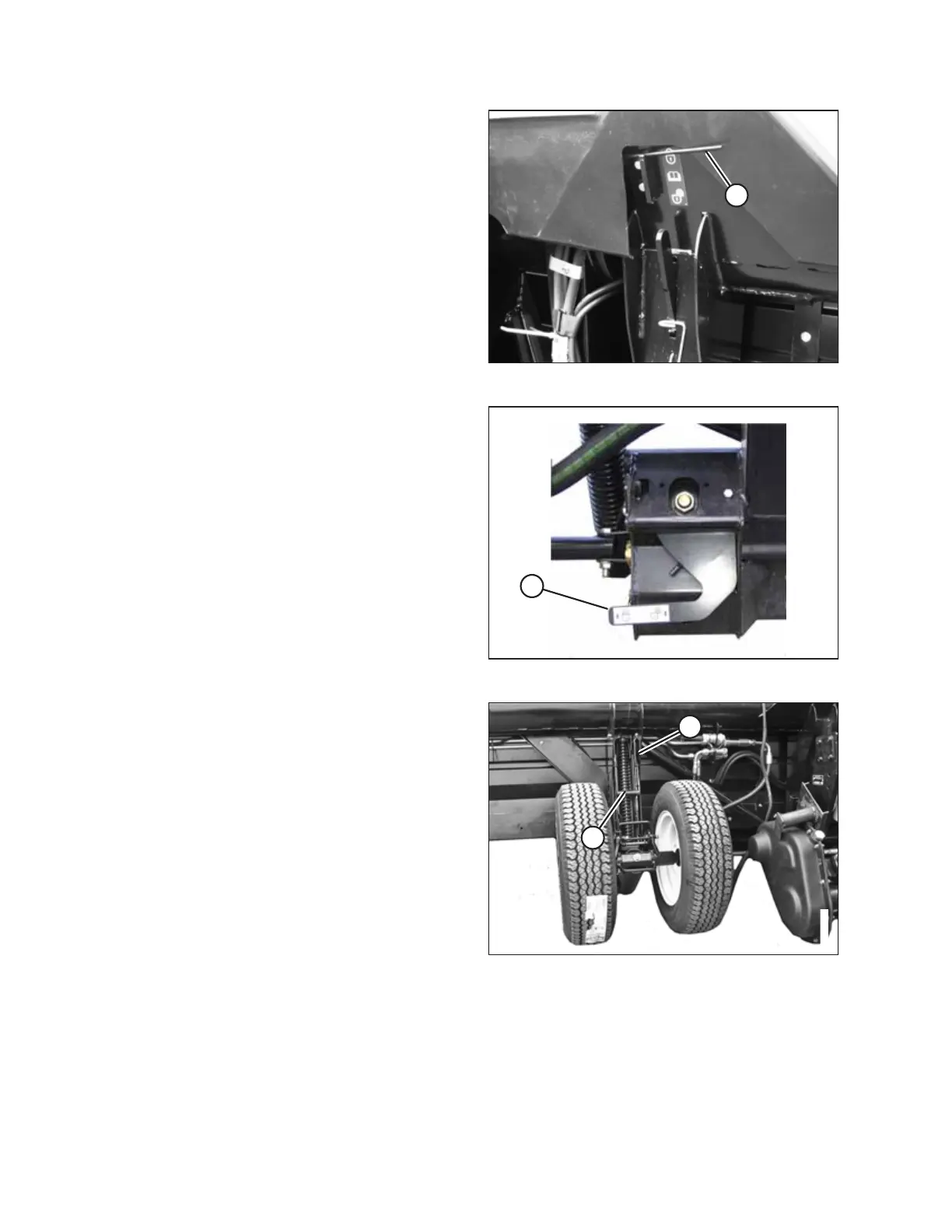

Figure 3.38: Wing Lock in Lock Position
6. Place wing lock spring handles (A) in the upper (LOCK)
position.
1001639
A
Figure 3.39: Header Float Lock in Unlock Position
7. Ensure that both header float lock levers (A) are in the
down (UNLOCK) position.
1001702
B
A
Figure 3.40: Left Wheel
8. Place the wheels on the stabilizer/slow speed transport (if
equipped) in the storage position as follows:
a. Lift the wheel slightly and pull up on handle (A) to
release the lock.
b. Move the wheels to the desired height, and engage
support channel into slot (B) in the upper support.
c. Push down on handle (A) to lock it in place.
