214323 70 Revision B

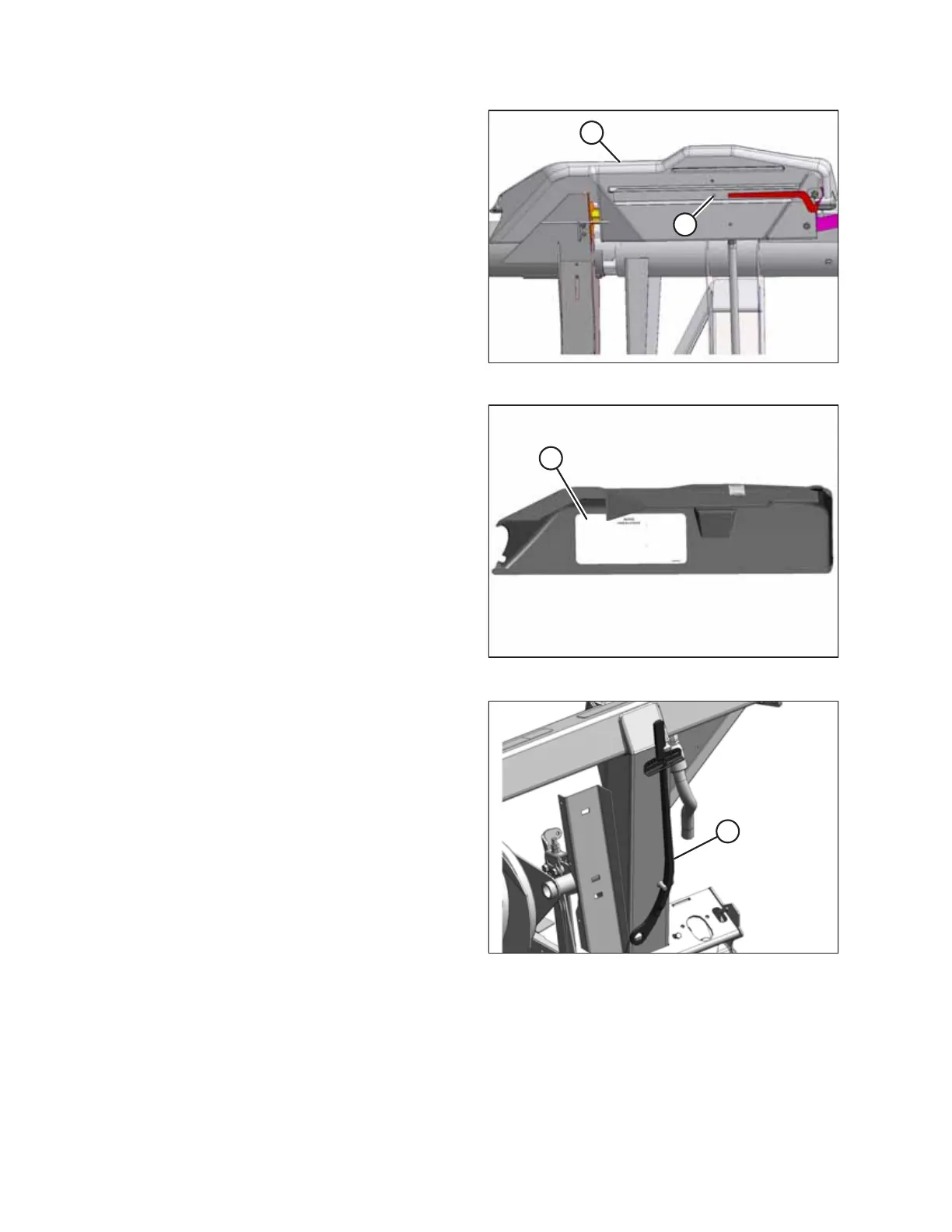

Figure 3.56: Linkage Cover
5. Remove linkage cover (A) by removing bolt (B) and rotating
the cover upward until the inboard end can be lifted off.
Figure 3.57: Linkage Cover
NOTE:
Refer to decal (A) inside each linkage cover.
Figure 3.58: Torque Wrench
6. Retrieve wrench (A) from the right leg of the adapter.
OPERATION
