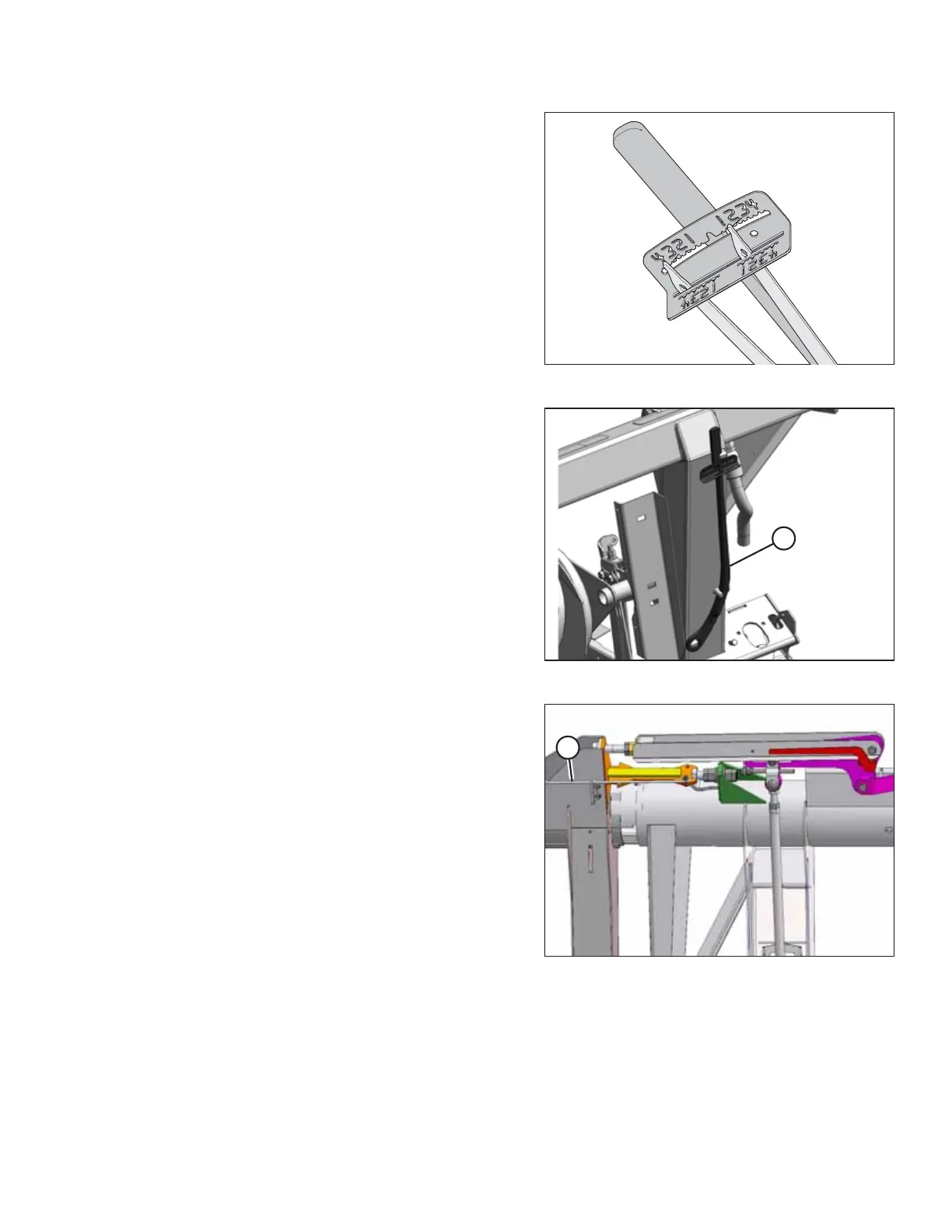

Figure 3.65: Wrench Indicator
• If the indicator range is as shown, the wing is too heavy.
Figure 3.66: Torque Wrench
13. Place wrench (A) back onto the right leg of the adapter.
Figure 3.67: Wing Lock in Lock Position
14. Lock the wings by moving spring handles (A) to the upper
(LOCK) position.
