214323 72 Revision B

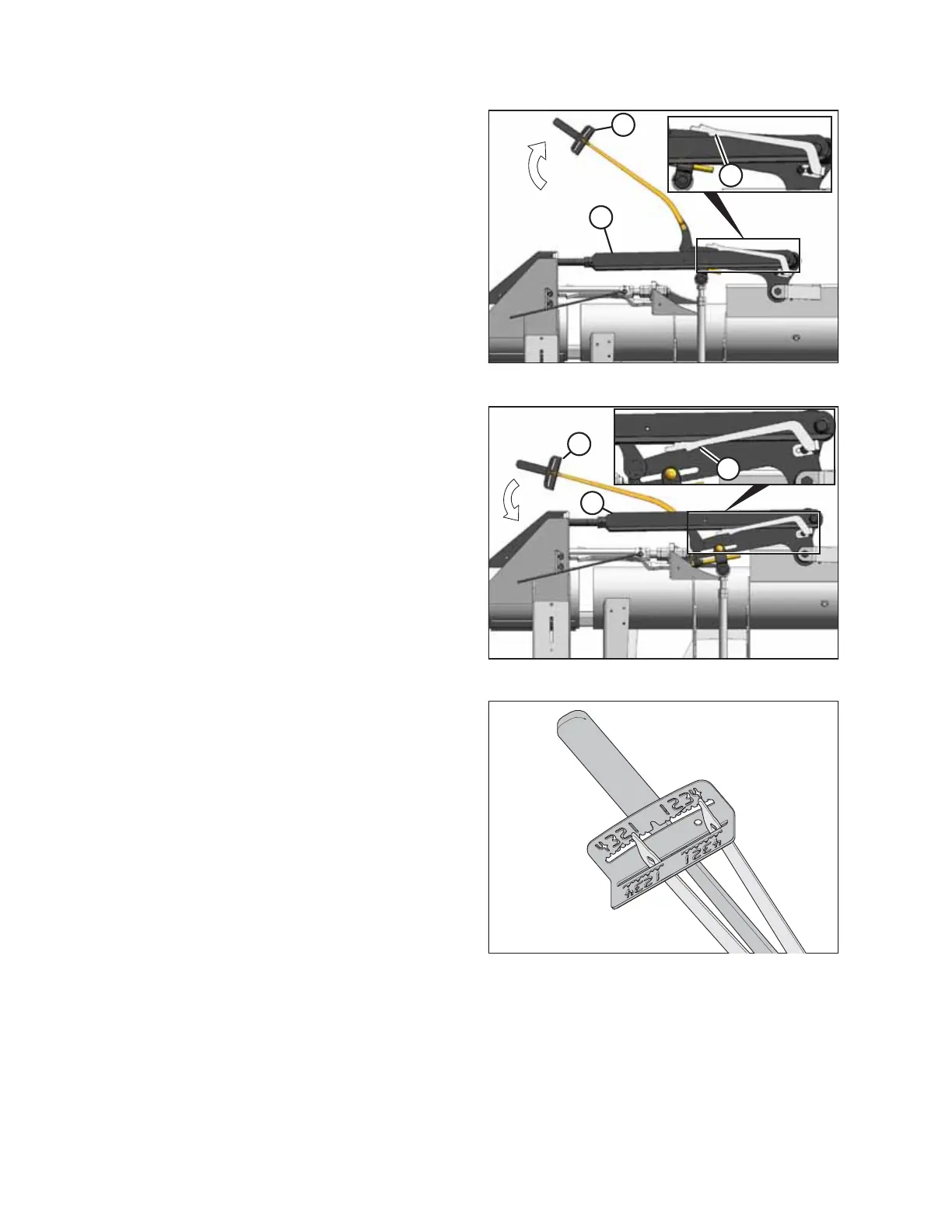

Figure 3.62: Balance Linkage
10. Move the wing upward with torque wrench (A) until the
pointer lower alignment tab (C) lines up with upper edge of
top-link (B).
11. Observe indicator reading (A) on the wrench and record it.
Figure 3.63: Balance Linkage
12. Move the wing downward with torque wrench (A) until
pointer upper alignment tab (C) lines up with the lower
edge of top-link (B). Record indicator reading (A) on
the wrench.
• If the difference between the readings is 0.5 or less, the
wing is balanced and no further adjustment is necessary.
Follow the steps below to reinstall the linkage cover.
• If the difference between the readings is more than 0.5,
the wing is not balanced. For instructions, refer to
Adjusting Wing Balance, page 74.
Figure 3.64: Wrench Indicator
• If the indicator range is as shown, the wing is too light.
OPERATION
To Next Page
