MacDon FlexDraper FD75 - Page 93

214323 75 Revision B
1003595
A
B

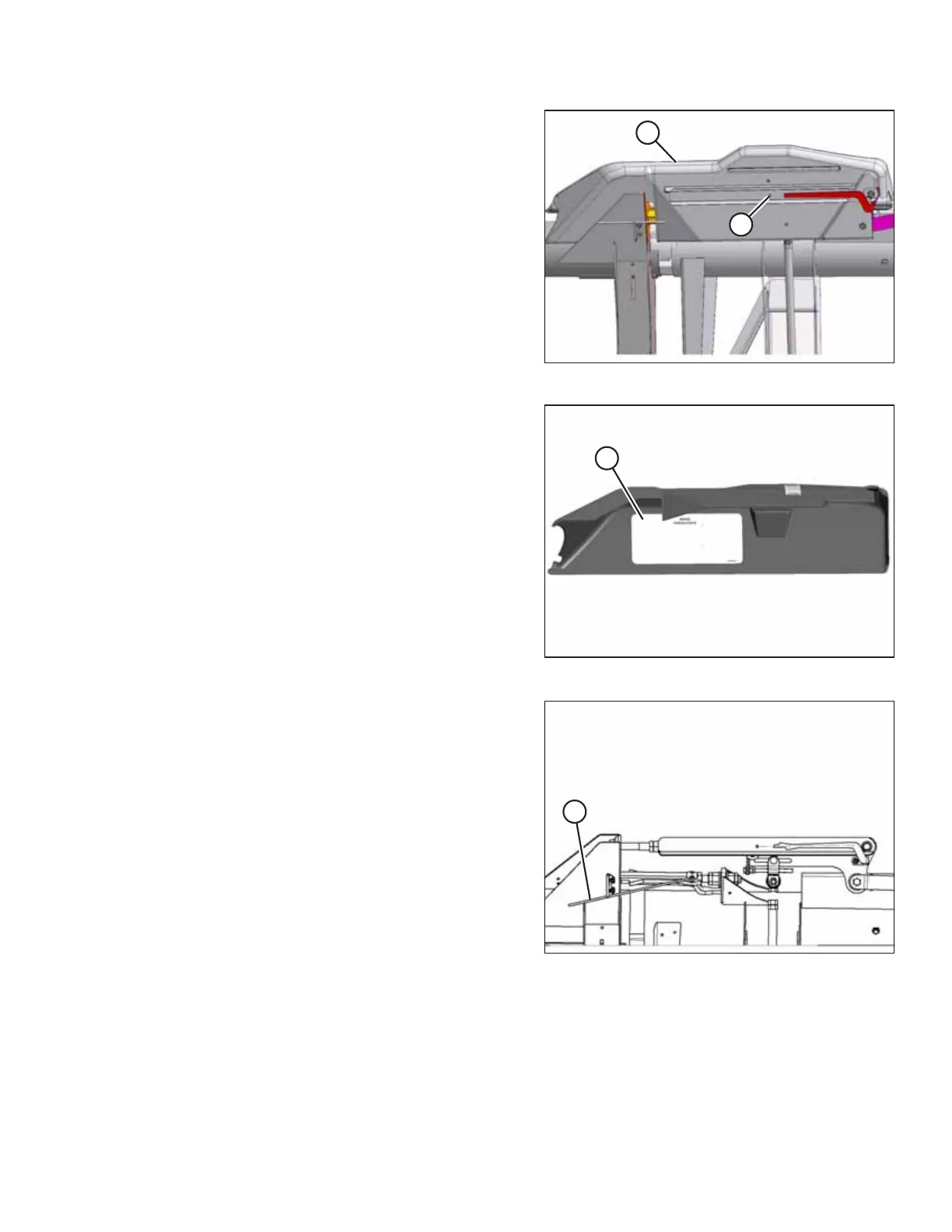

Figure 3.70: Linkage Cover
5. Remove linkage cover (A) by removing bolt (B).
1004577
A
Figure 3.71: Linkage Cover
NOTE:
Refer to decal (A) inside each linkage cover.
1009645
A
Figure 3.72: Wing Lock in UNLOCK Position
6. Unlock the wings by moving handle (A) to lower (UNLOCK)
position.
OPERATION
