MacDon FlexDraper FD75 - Header Angle; Adjusting Header Angle from Combine

214323 76 Revision B
1003618
A

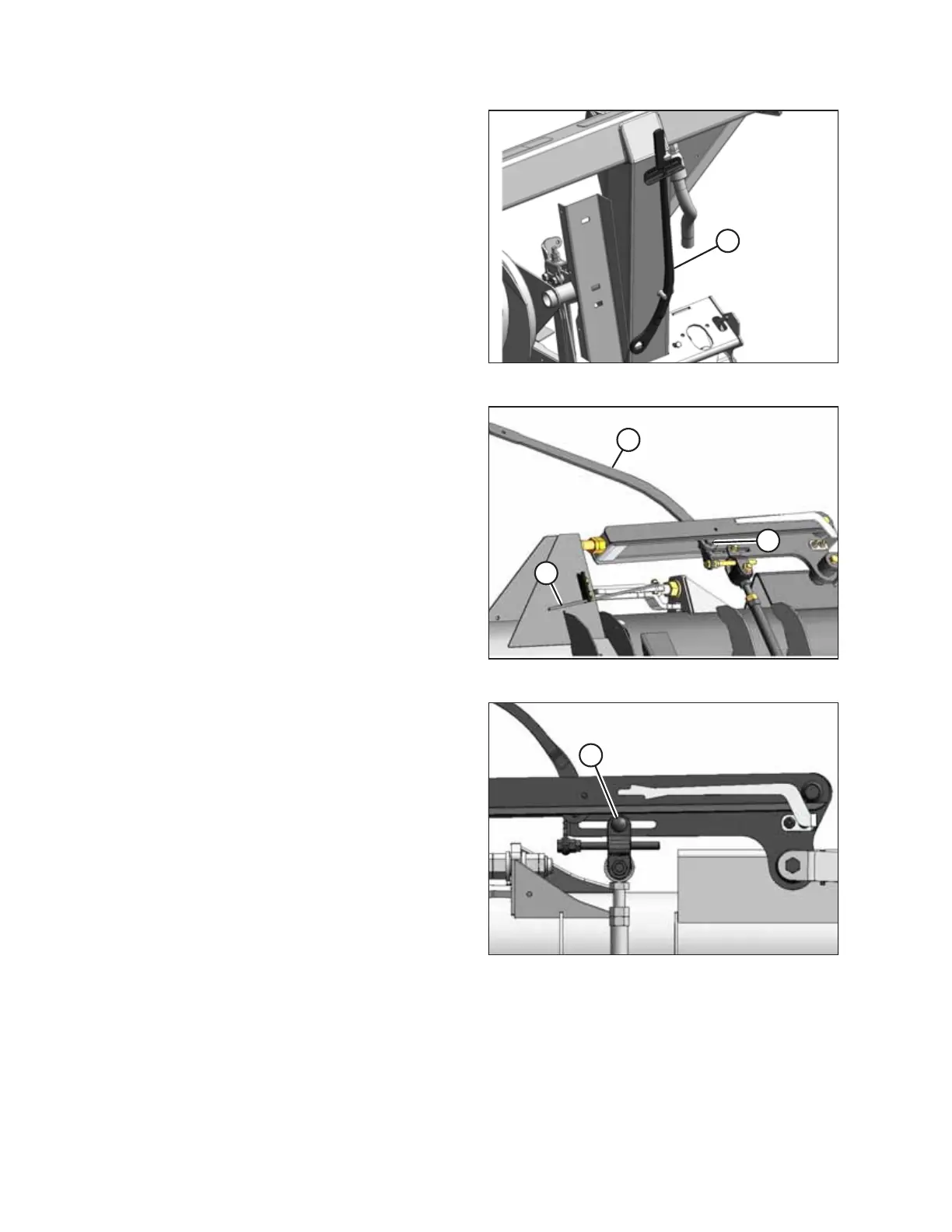

Figure 3.73: Torque Wrench
7. Retrieve wrench (A) from the adapter leg.
1023837
A
B
C
Figure 3.74: Balance Linkage
8. Place torque wrench (A) on bolt (B). Check that wing
lock (C) is in the lower position.
1023943
A
Figure 3.75: Balance Linkage
9. Loosen clevis bolt (A) for the wing requiring adjustment.
IMPORTANT:
Do NOT loosen any other hardware.
OPERATION
