Mitutoyo SJ-210 - Setting Calculation Conditions When ΔC (Htp for ANSI) Is Selected

8. MODIFYING PARAMETERS
No. 99MBB122A
8-27
8.4.5 Setting calculation conditions when δc (Htp for ANSI) is selected
When the parameter “δc” (“Htp” for ANSI) is selected, the slice level and reference line must
also be set as calculation conditions.
■ Operating procedure (Refer to “■ Accessing the Submenu screen” in Section 8.1.)

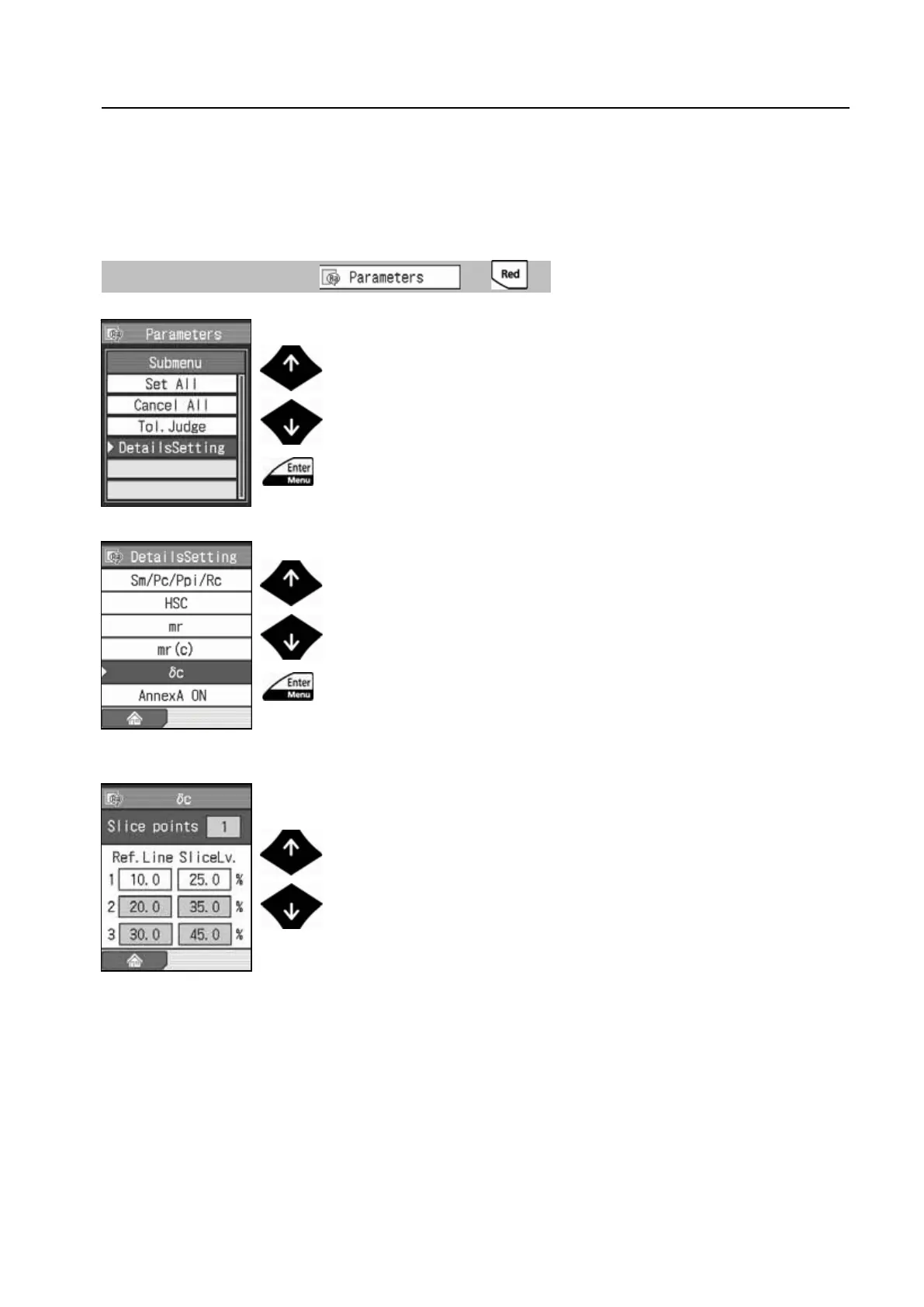

Home screen to Main Menu   
1 Select “DetailsSetting” with the [ ↑ ] [ ↓ ] keys, and press the
[Enter/Menu] key.
2 Select “δc” (“Htp” for ANSI) with the [ ↑ ] [ ↓ ] keys, and press the
[Enter/Menu] key.
3 Set the number of sections.
a Use the [ ↑ ] [ ↓ ] keys to select “Slice points”.
Submenu screen
Setting Details Selection screen
δc Setup screen
