PCI has the limitations for mounting slots depending on the processor memory module
configuration. Note that there are also limitations according to WOL target slots, card sizes, and
supported standards.
The following processor memory modules must be mounted for using PCI slots.
For A1080a-S/A1040a Model
Used PCI Slots Processor Memory Modules Connected to PCI Slots
PCI 1, 2, 3, 4 Processor memory module 1 or 3
PCI 5, 6, 7 Processor memory module 2 or 4
For A1080a-D Model
Used PCI Slots Processor Memory Modules Connected to PCI Slots
PCI 1, 2, 3, 4 Processor memory module 1 or 3
PCI 5, 6, 7 Processor memory module 2 or 4
PCI 8, 9, 10, 14 Processor memory module 5 or 7
PCI 11, 12, 13 Processor memory module 6 or 8

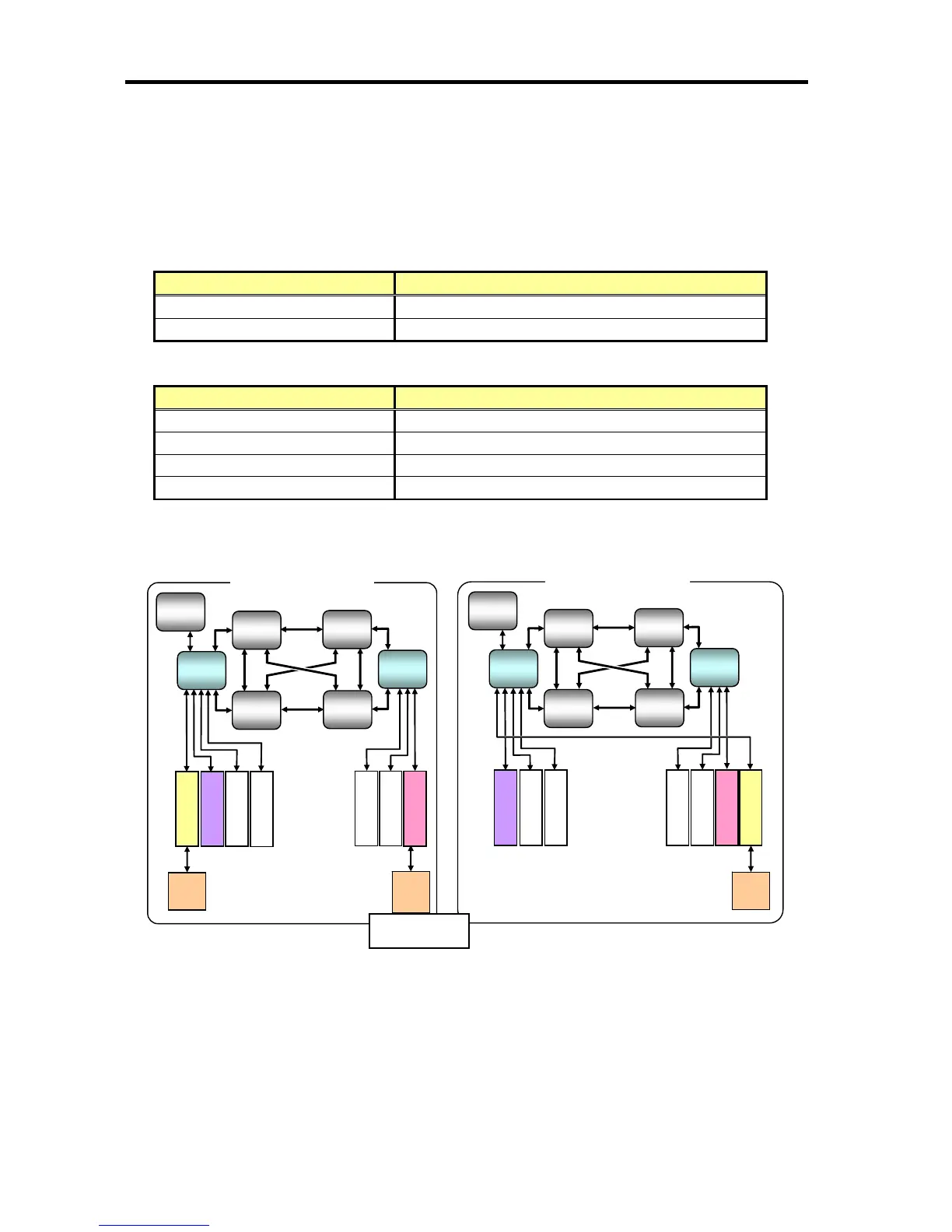

Connection Diagram of A1080a-S/A1080a-D/A1040a Model
* PMMx is an abbreviation of a processor memory module.
* IOHx is an abbreviation of an I/O hub.
* ICH is an abbreviation of an I/O control hub.
*Server2 exists only if A1080a-D
SAS
RAID
SAS
RAID
PM
PM
PM
PM
IOH
IOH
ICH
PM
PM
PM
PM
IOH
IOH
ICH
PCI Slot1
PCI Slot2
PCI Slot3
PCI Slot4
PCI Slot5
PCI Slot6
PCI Slot7
PCI Slot8
PCI Slot9
PCI Slot10
PCI Slot11
PCI Slot12
PCI Slot13
PCI Slot14
SAS
RAID
SAS
RAID
Server 1
Server 2
SAS
RAID
