Hardware

103

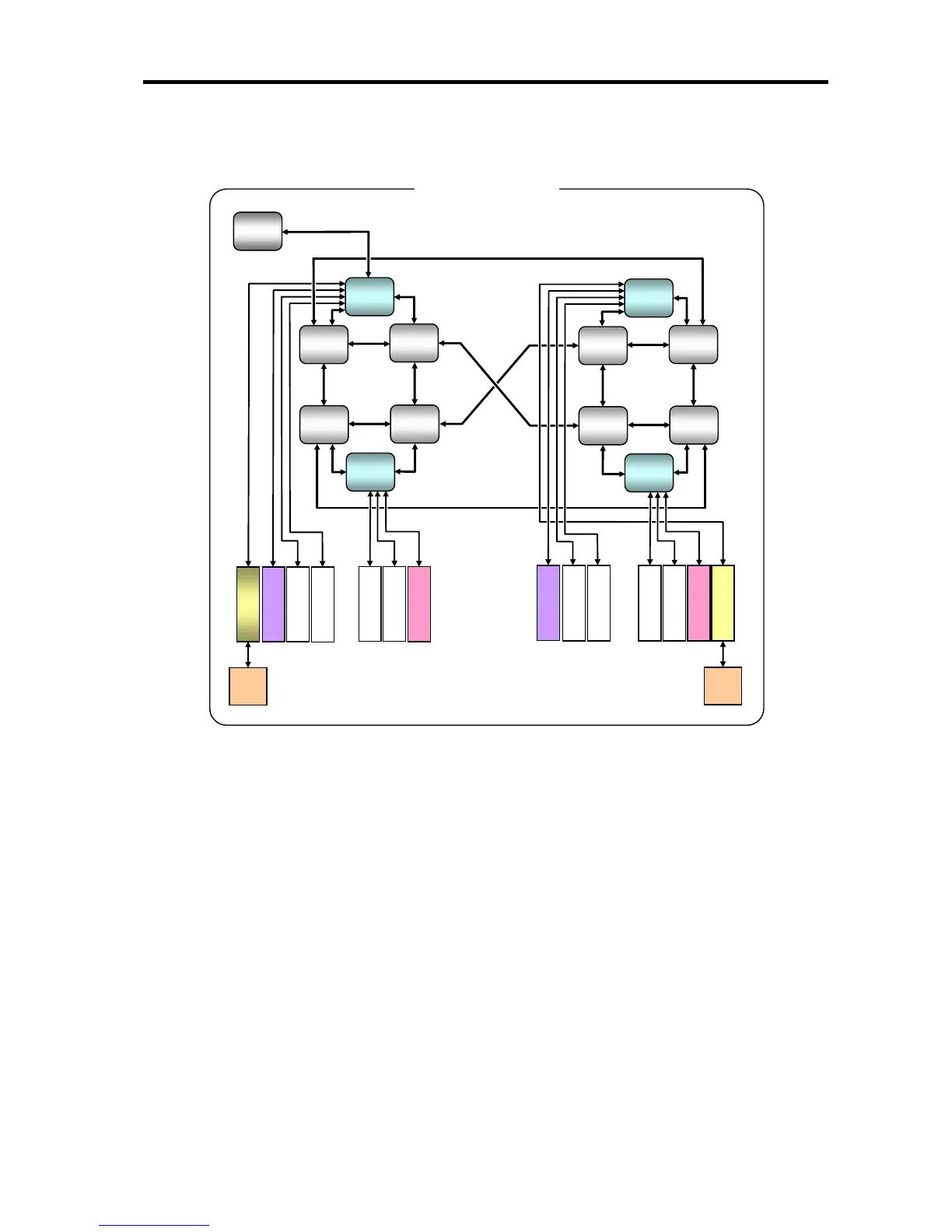

Connection diagram of A1080a-E model

* PMMx is an abbreviation of a processor memory module.

* IOHx is an abbreviation of an I/O hub.

* ICH is an abbreviation of an I/O control hub.

PMM1

PMM2

PMM4

PMM3

IOH1

IOH2

ICH

PMM7

PMM8

PMM6

PMM5

IOH3

IOH4

PCI Slot1

PCI Slot2

PCI Slot3

PCI Slot4

PCI Slot5

PCI Slot6

PCI Slot7

PCI Slot8

PCI Slot9

PCI Slot10

PCI Slot11

PCI Slot12

PCI Slot13

PCI Slot14

SAS

RAID

SAS

RAID
