4. Determine the position of the rear side of the slide rail assembly.
The rear side of the slide rail assembly can be adjusted depending to the rack depth.

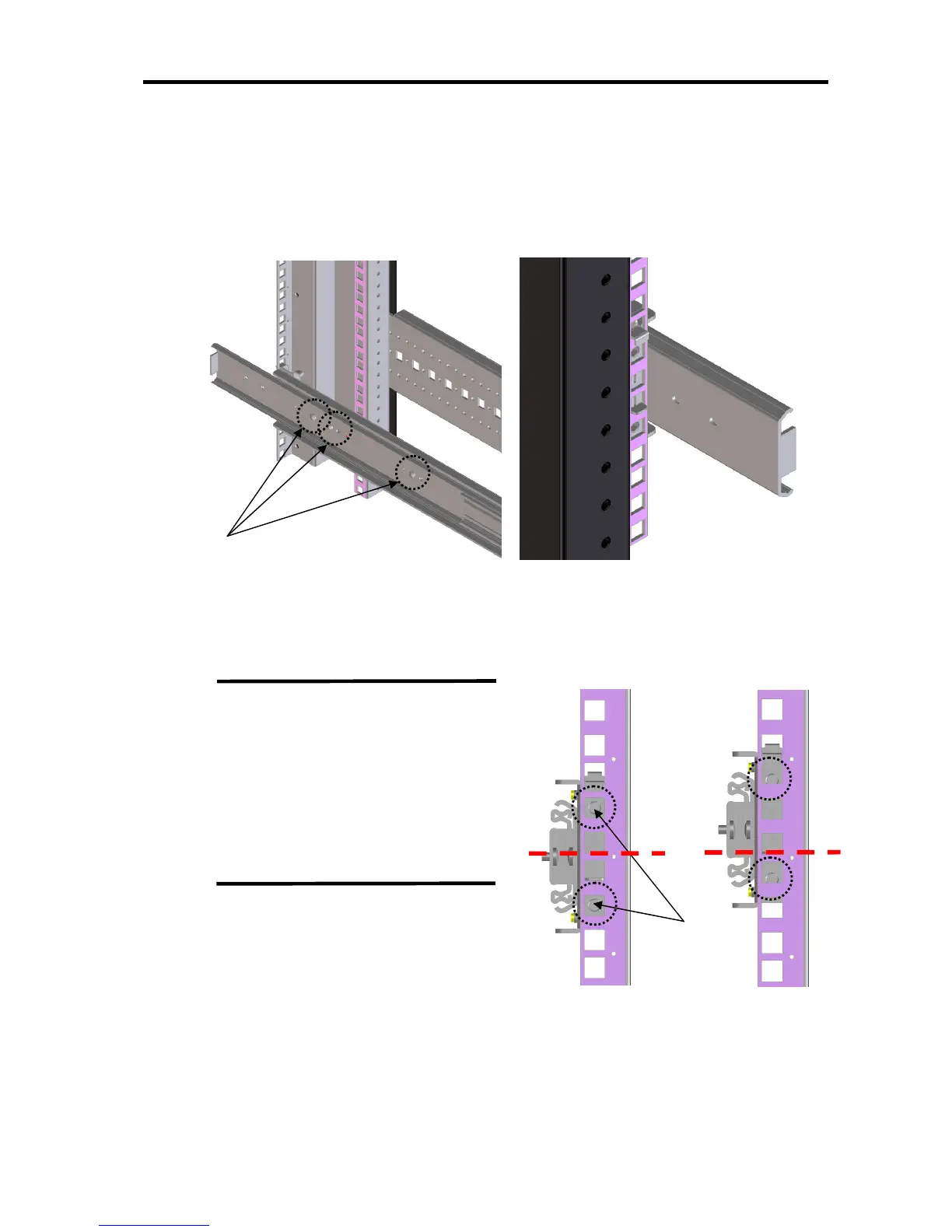

Loosen three screws shown below and adjust the length. Adjust the position of the slide rail
assembly on the rear of the rack and mount it in the same way for the front side.
NOTE:
● Ensure that screw holes (4 holes at
front and rear) of the rail can be
seen with the frame tip of the slide
rail assembly touches completely
with the frame of square holes.
● Confirm that the slide rail assembly
is positioned horizontally.
○
×
Loosen three screws and adjust the length.
Rear Side
Screw Holes
OK
NG
