3. Place the slide rail assembly on the front side of the rack onto the position specified in step 1.
Hitch the holding tab to the square hole.
IMPORTANT:
When mounting the slide rail, the
middle rail may fall out if the
slide rail inclines.
NOTE:
● Check the installation direction
of the slide rail assembly.
Ensure that the bracket side
(side without rail) is placed
outside the rack when hooking
to a square hole of the rack.
● There are square holes for
screwing on pillars on the front
and rear side of rack. There is a
circular punch mark per 1U
unit on a rack manufactured by
NEC. Use them at installation
as a guide.

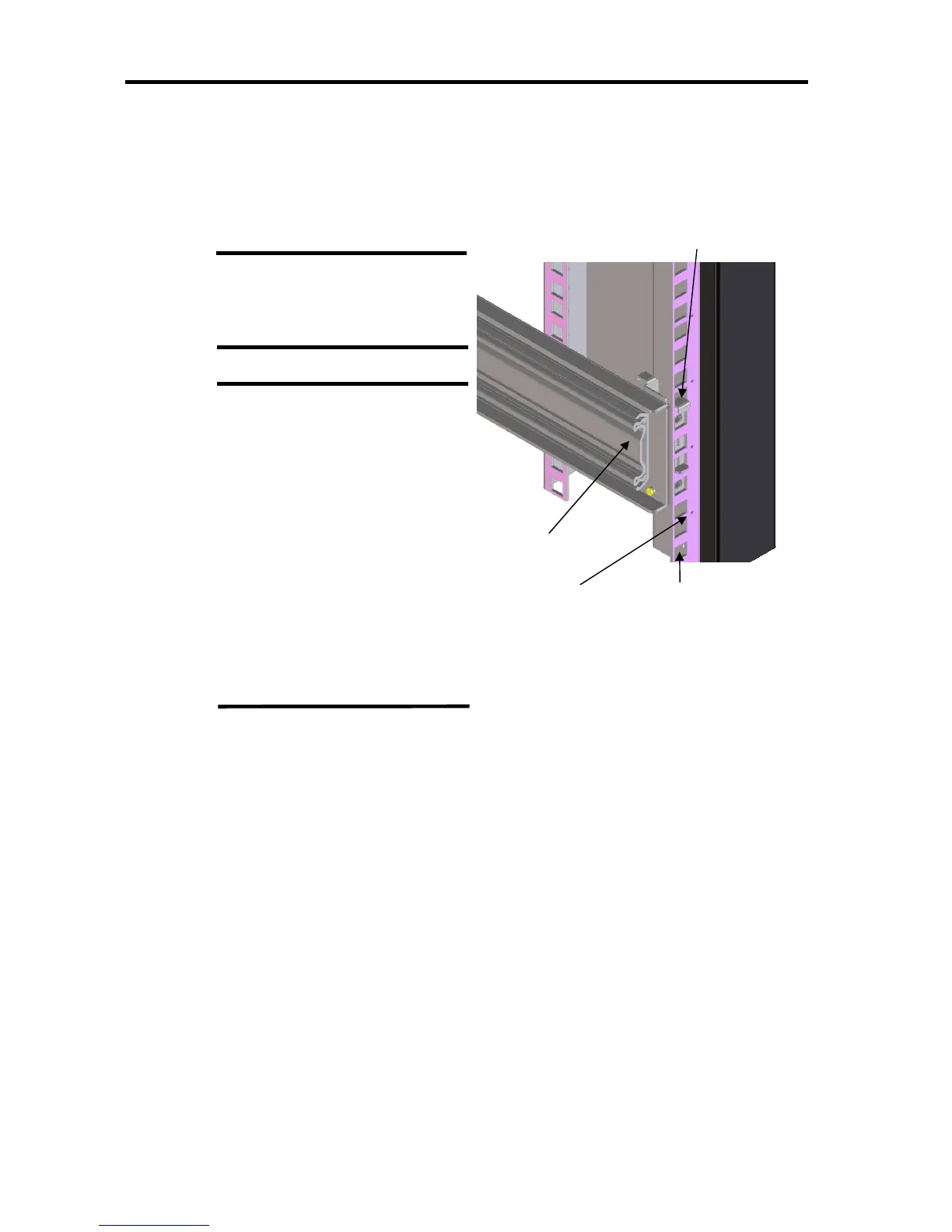

Middle Rail
Front Side
Holding Tab
Square Hole
Punch Mark Per 1U
Middle Rail
