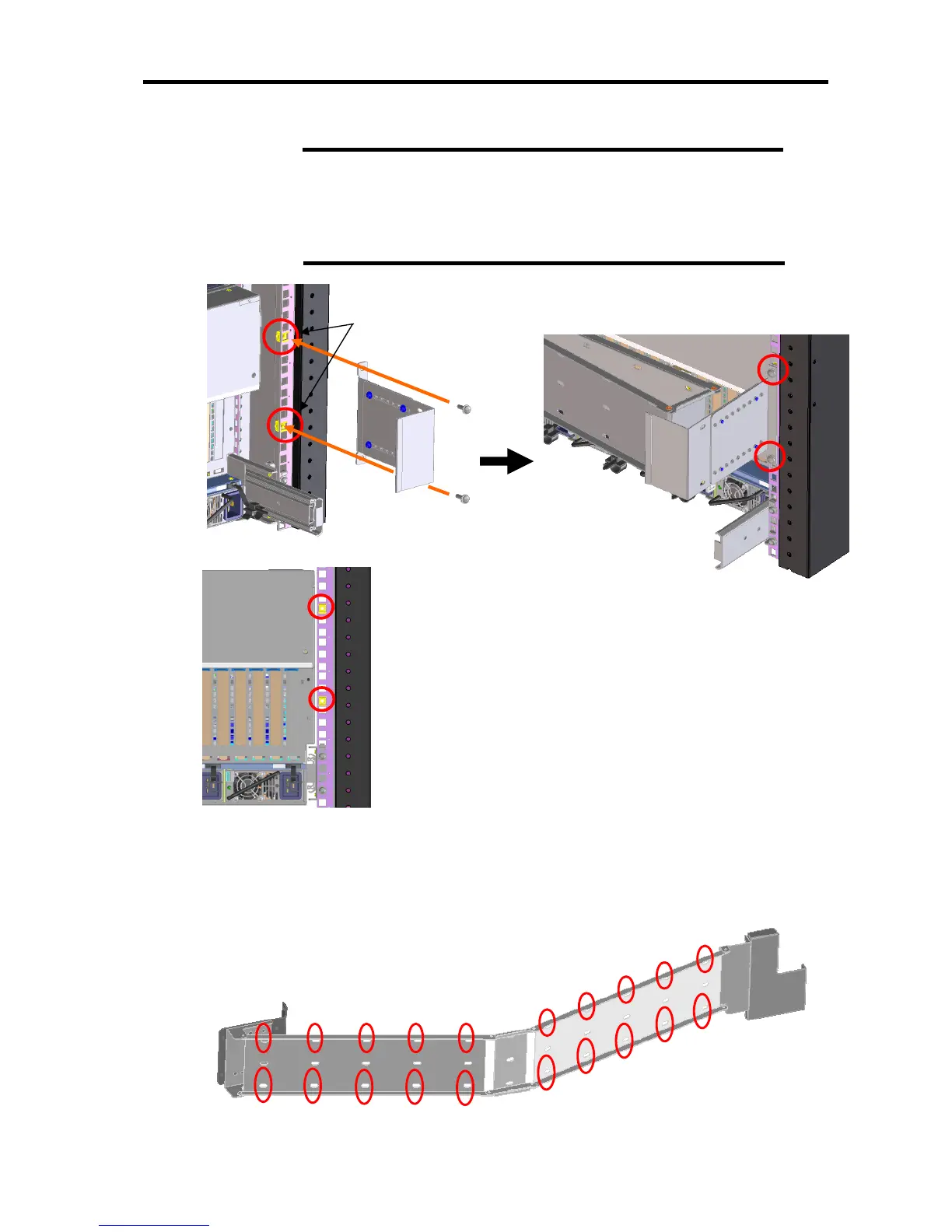

26. Attach the cable cover to the rack by using 2 screws.
27.Attach repeat ties to the cable arm.
There are 25 repeat ties provided.
Of them, 20 repeat ties are attached to 20 holes of the cable arm and used to fix the cable.
One of them is used to fix the cable arm to the cable cover so that the cable arm is in stable
condition.
NOTE:
Loosen the 4 screws on the front of the server that were tightened
in step 12 and move the server back and forth to check that the
server can be pulled out from or inserted into the rack smoothly.
Fix the rack again after checking it.
Rack nuts for
square or circle
holes
The place for brackets(rack nuts).
