Hardware
355

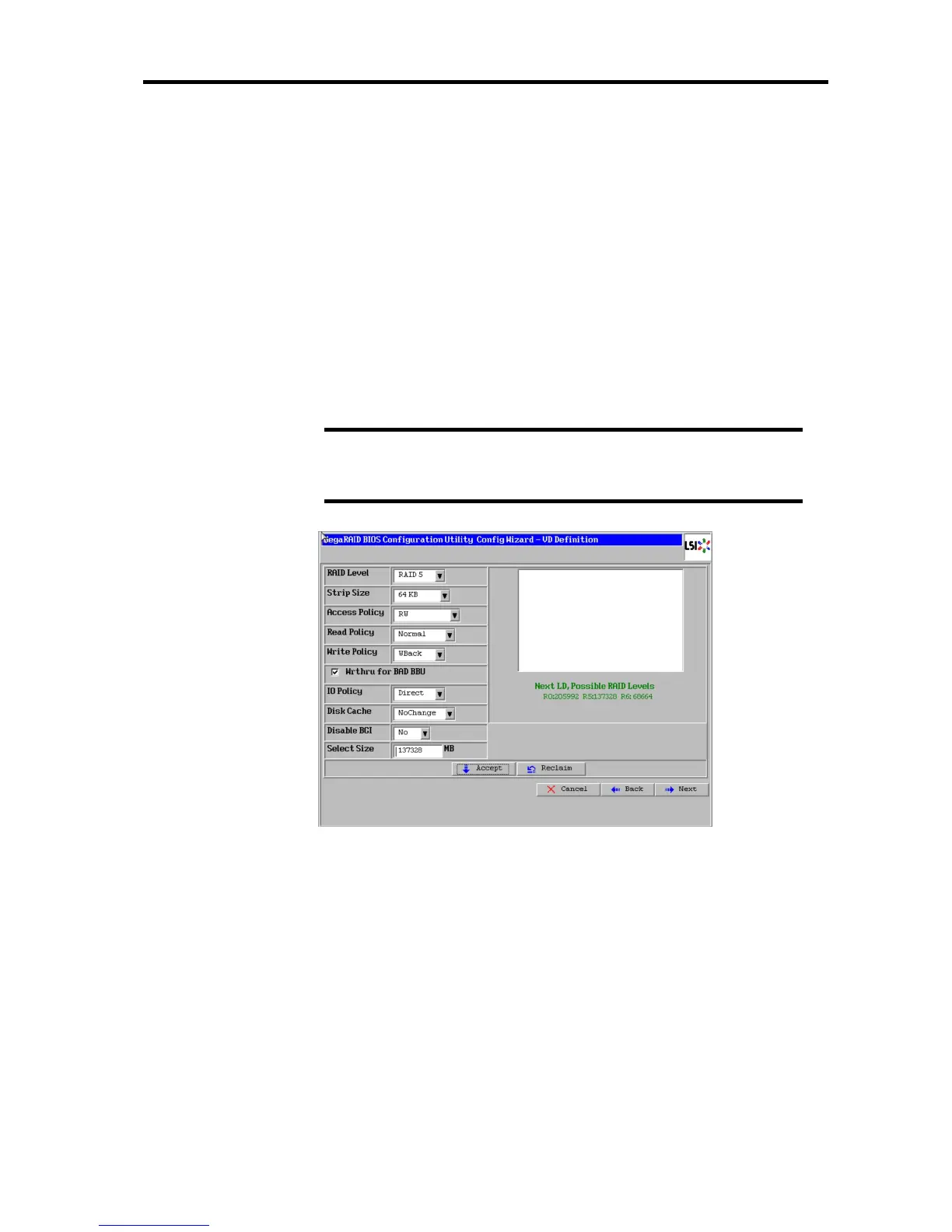

As an example, define a RAID5 VD of yyyyy MB.
1. Specify the necessary parameters in left columns.
2. Enter "yyyyy" in "Select Size" field.
3. Upon completion of VD definition, select [Accept] at the lower center of the screen, and
press Enter.
4. If you want to define another VD, select [Back], press Enter, and repeat steps starting
from Span Definition screen.
5. Upon completion of VD definition, select [Next] and press Enter.
IMPORTANT:
You need to specify the size appropriate to "RAID Level". Enter the
value smaller than that indicated in "Next LD, Possible RAID Levels".
