Hardware
359

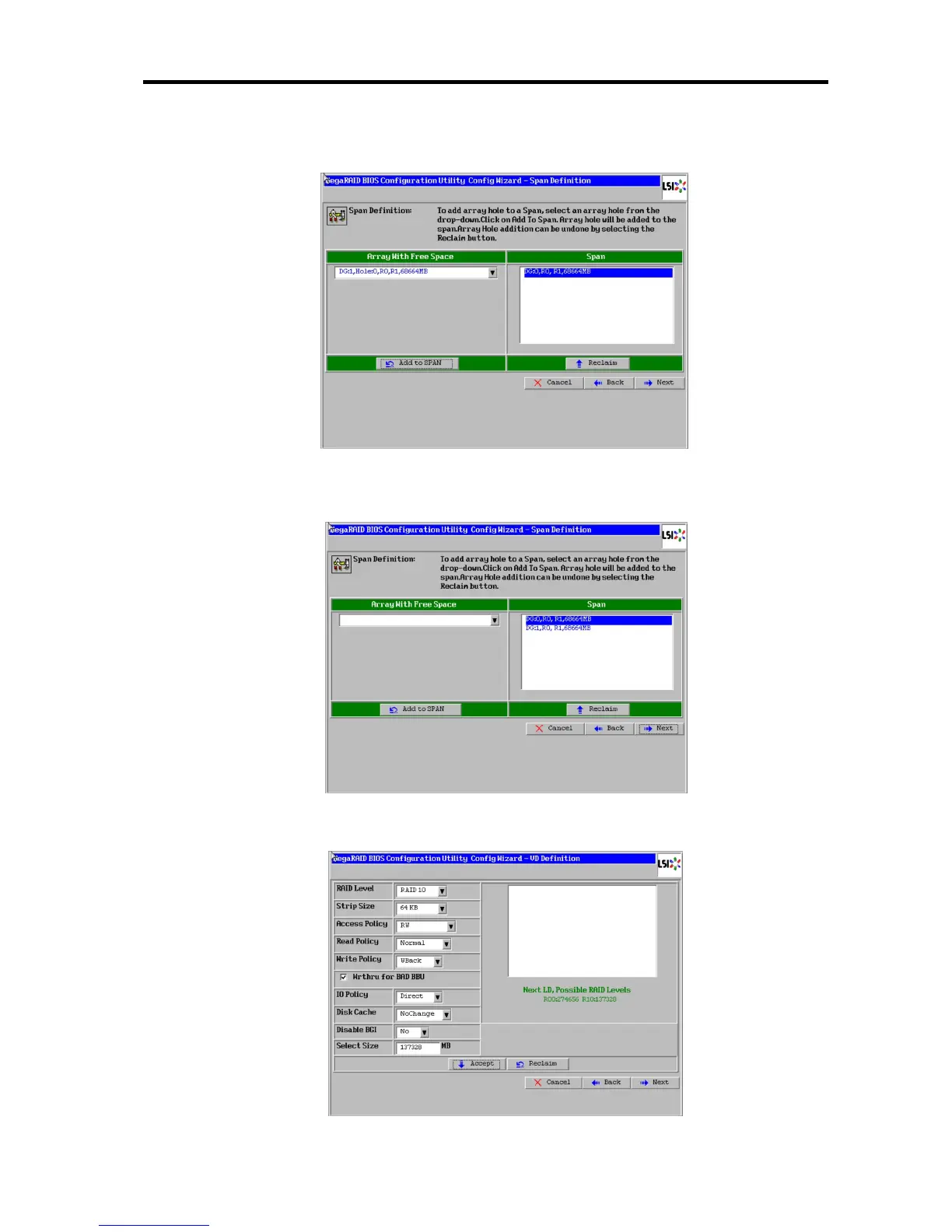

6. Select DG0 from "Array With Free Space" frame, then select [Add to SPAN] and press
Enter. The DG is defined in the "Span" field to the right.
7. Then, select DG1 and select [Add to SPAN] and press Enter. When the two DGs are
defined in the "Span" field to the right, select [Next] and press Enter.
8. The VD Definition screen is displayed. Enter the necessary parameters, and select
[Accept] at the bottom center of the screen, and press Enter.
To Next Page
