Hardware
360

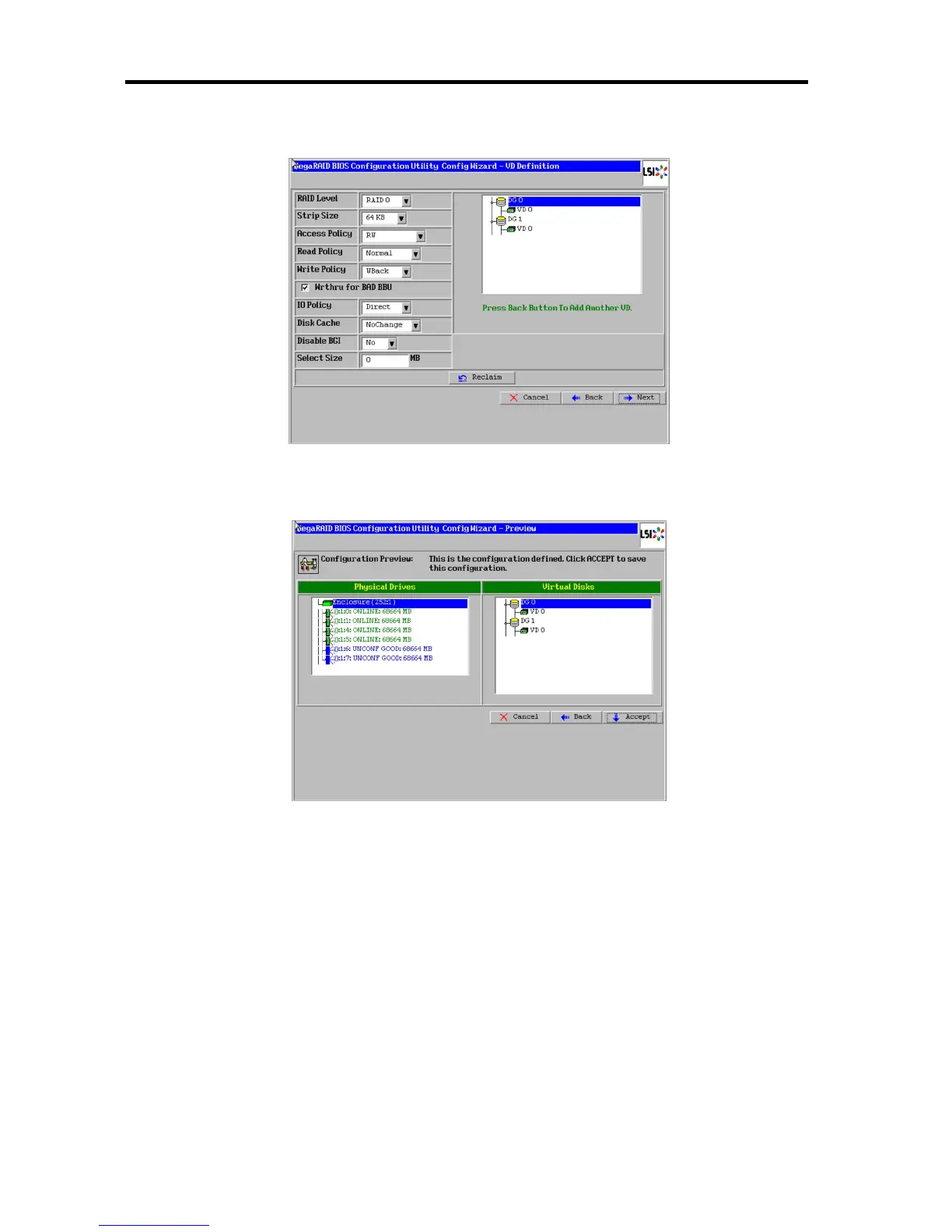

9. Make sure that both DG0 and DG1 are defined as VD 0, then select [Next] at the lower
right of the screen and press Enter.
10. On the "Preview" screen, make sure the VD is defined correctly, then select [Accept] at
the lower right of the screen and press Enter.
11. The confirmation message "Save this Configuration?" appears. Select "Yes" and press
Enter to save the configuration.
12. The confirmation message "All data on the new Virtual Disks will be lost. Want to
Initialize?" appears. Normally, select "Yes" and press Enter.
13. "Virtual Disks" operation screen is displayed. If no other operation is required, select
[Home] at the lower left of the screen and press Enter.
14. The WebBIOS Home Menu is displayed. Virtual Disk you have created is displayed in
the lower right frame of the screen.
