Operation and Maintenance
617
If nothing is shown on “View Faults” of EXPRESSSCOPE® Monitor, or if the displayed
abbreviation is not described on the above list, EXPRESSSCOPE® Monitor itself may have a
failure. In such a case, follow the checking procedure below.
In this case, ｃheck the operation status and the suspected server status on system web
console.

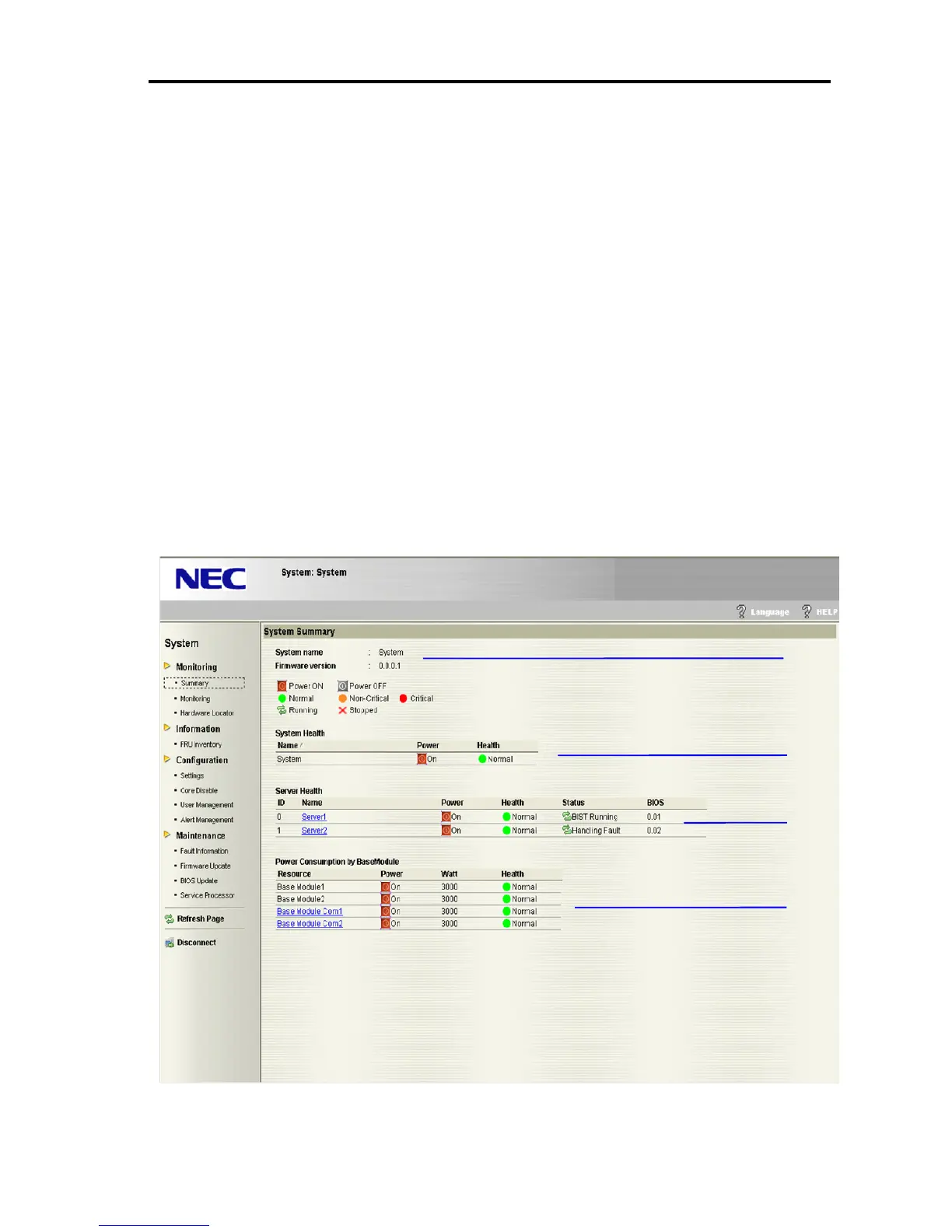

1. On the System WEB Console, click “Summary” in “Monitoring”, listed on the left menu.
Confirm the operating status and the suspected failure Server from the System Summary
screen. Confirm the System Health and Health status of Server Health to determine the
faulty status.
<Items to be confirmed>
✔：Firmware version
✔：System Health
✔：Server Health
✔：Power Consumption by BaseModule
2. Collect the necessary information on the System Summary screen since information
listed here needs to be collected in the next procedure:
②
③
④
①
To Next Page
