Operation and Maintenance
633

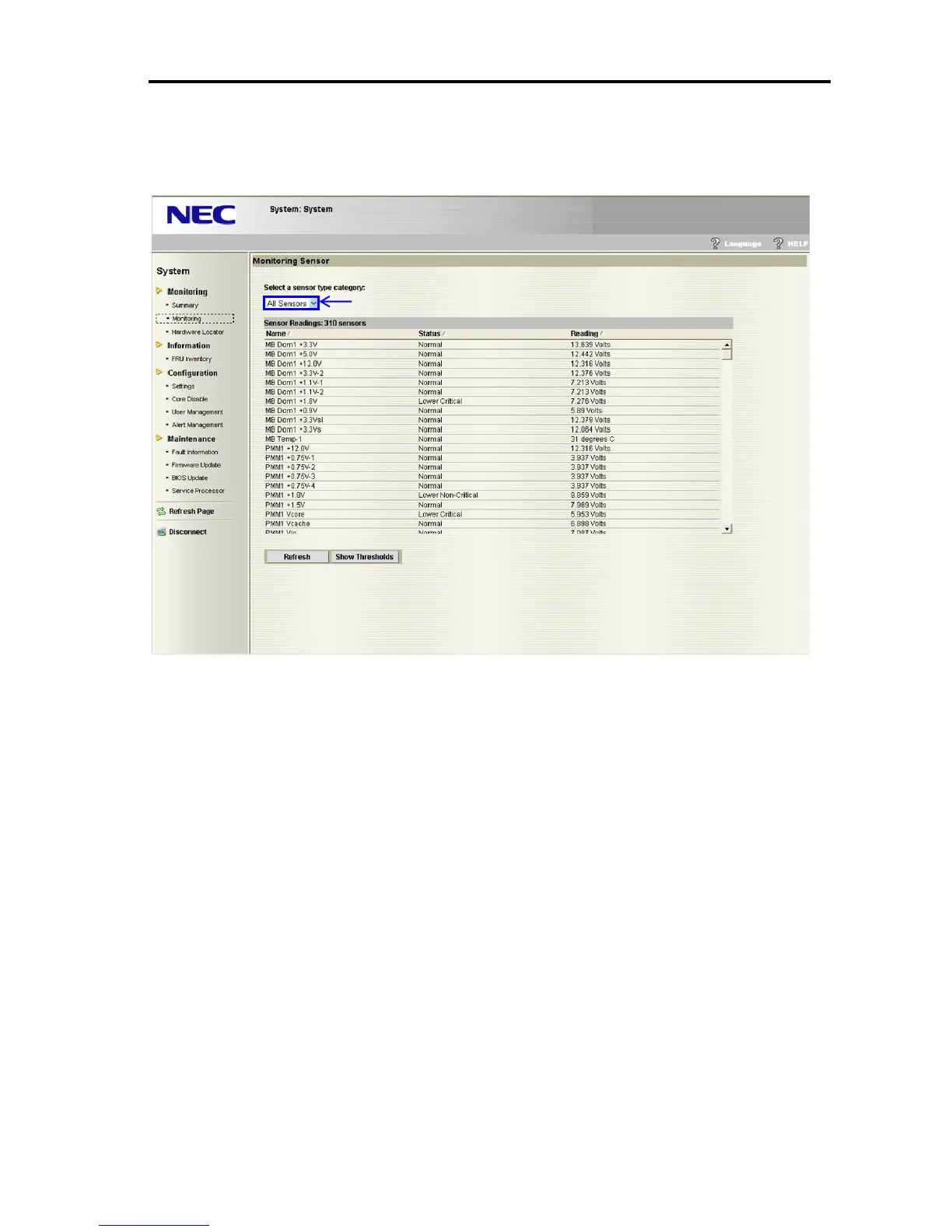

2) Confirm if there are any issues concerning the status of each part on the Monitoring
Sensor. In Select a sensor type category, select All Sensors. When a scroll bar is
displayed, drag the scroll box to confirm the status of all parts.
<Description>
✔Name ：Sensor name.
✔Status ：Normal indicates a normal status. Non-Critical and Critical indicate that a
failure was found.
✔Reading ：Sensor value.
3) Read the information on the Monitor Sensor screen as necessary since information listed
here needs to be collected in the next procedure. Right-click on the Sensor Readings
screen and select “Select All (A)”. Then, right-click and select “Copy (C)”. Paste the data
in the Text Editor.
4) Repeat steps from 1) to 3) above for all WEB Consoles that need to be confirmed.
ALL Sensors
To Next Page
