Nortel BayStack 450-24T User Manual

BayStack 450 10/100/1000 Series Switches
309978-D Rev 01 1-71
One client, connected to S2, responds with a host membership report. Switch S2
intercepts the report from that port, and generates a proxy report to its upstream
neighbor, S1. Also, two clients connected to S4 respond with host membership
reports, causing S4 to intercept the reports and to generate a consolidated proxy
report to its upstream neighbor, S1.

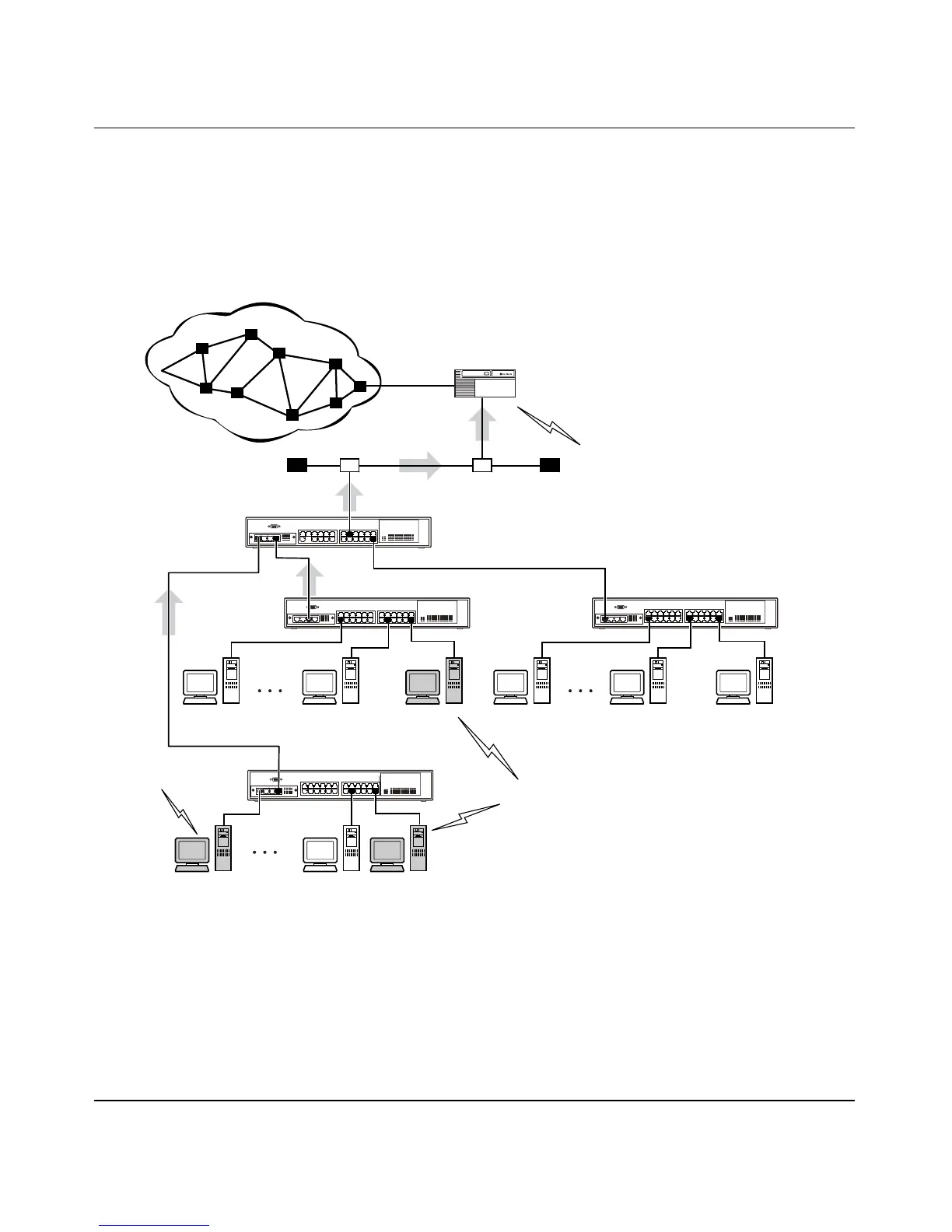

Figure 1-41. BayStack 450 Switch Filtering IP Multicast Streams (1 of 2)
Switch S1 treats the consolidated proxy reports from S2 and S4 as if they were
reports from any client connected to its ports, and generates a consolidated proxy
report to the designated router. In this way, the router receives a single
consolidated report from that entire subnet.
Consolidated
report
BS45022B
Host
membership
report
Host
membership
report
Designated
router
Host
membership
query
Internet
BayStack 450-24T
Switch
BayStack 450-24T
Switches
Proxy
Proxy
BayStack 450-24T
Switch
S2
S4
S1
S3
