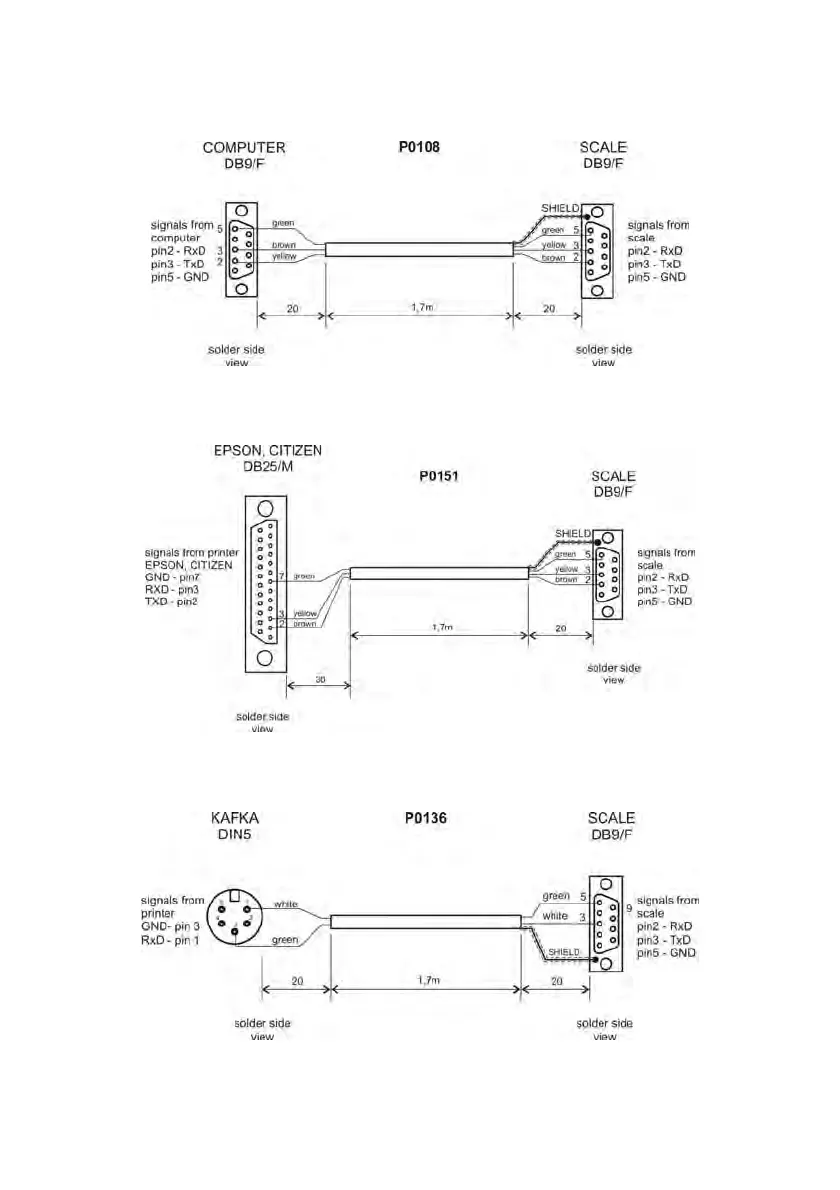

43. DIAGRAMS OF CONNECTION CABLES

Scale – computer cable

Scale – printer (CITIZEN, EPSON) cable

Scale – Kafka printer cable
