RADWAG PUE 7.1 User Manual

57

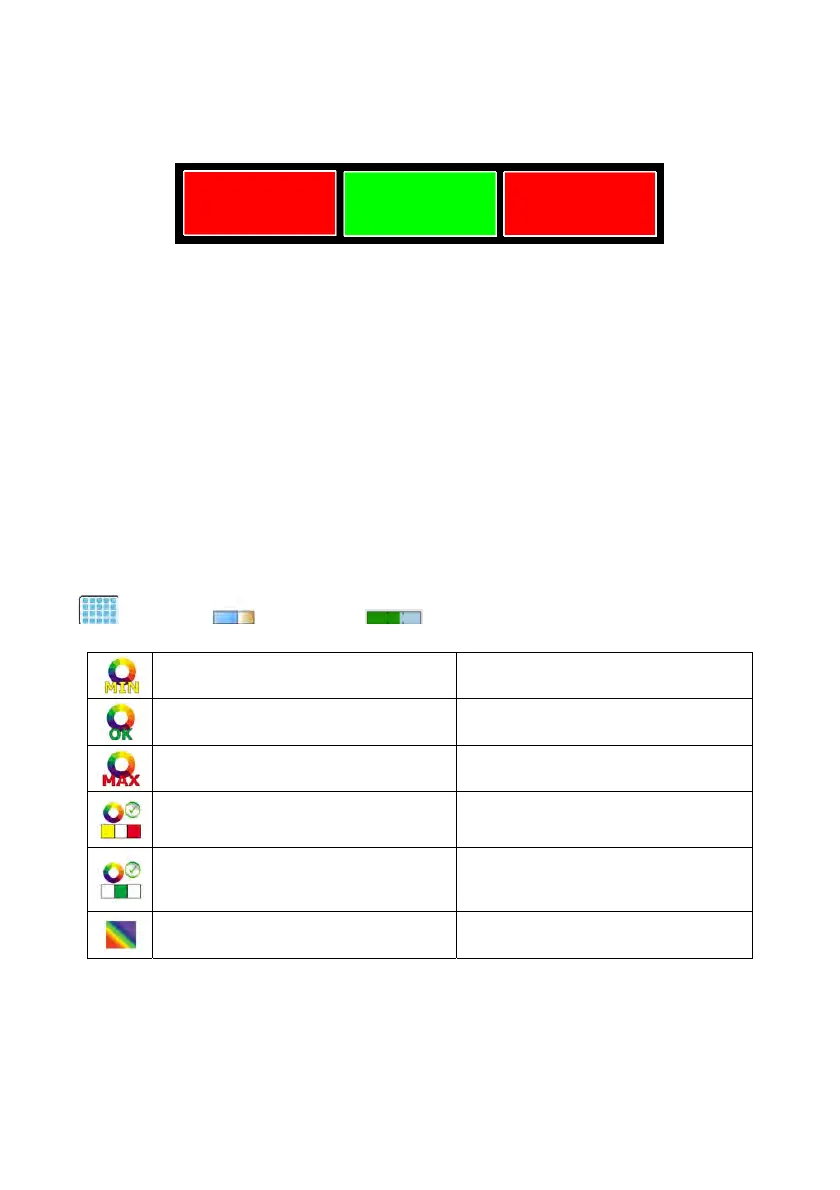

Means of operation:
• This type of bargraph comprises one green and 2 red fields.
• The left red field – signals that the load on the pan is lower than
the minimum weighing threshold (Min threshold);
• The central green field – signals that the load on the pan is within the set
required interval for the weighed product (OK value between Min
and Max thresholds);
• The right red field – signals that the load on the pan is greater than
the maximum weighing threshold (Max threshold).
17.4.4. Bargraph type: „Linear”
Settings of “Li
near” bargraph are accessible in submenu
“
Display / Bargraph / Linear”:
Min threshold signalling colour
Colour selection for signalling MIN
threshold. 18 colours palette available.
OK threshold signalling colour
Colour selection for signalling OK
threshold. 18 colours palette available.
Max threshold signalling colour
Colour selection for signalling MAX
threshold. 18 colours palette available.
Min Max range background colour
Background colour selection for MIN,
MAX range of the bargraph.
17 colours palette available.
OK range signalling colour
Background colour selection for OK
range of the bargraph.
18 colours palette available.
Gradient
Enabling / Disabling filling effect
“Gradient” type.
