55

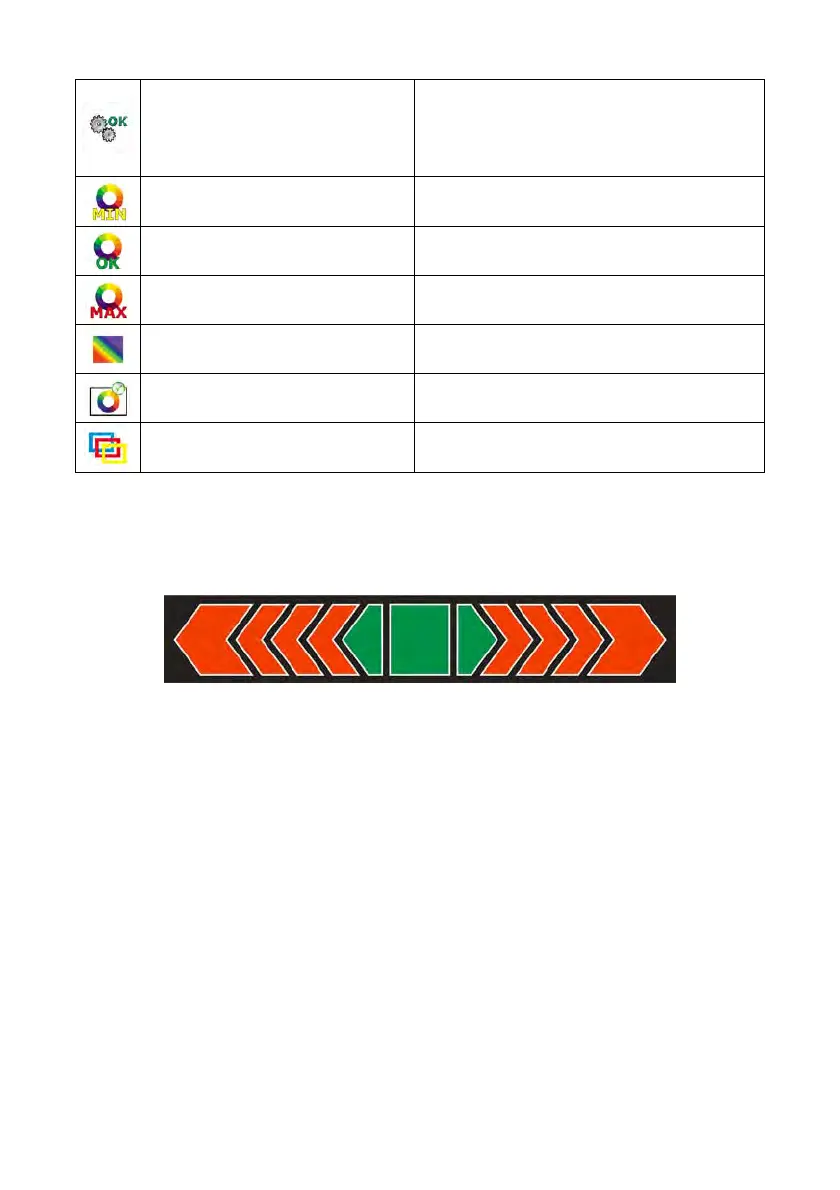

OK threshold working mode
Stable – signalling of OK thresholds is
previewed on exceeding LO threshold and
reaching stable measurement result;
Unstable – signalling of OK thresholds is
previewed on exceeding LO threshold
Min threshold signalling colour
Colour selection for signalling MIN threshold.
18 colours palette available.
OK threshold signalling colour
Colour selection for signalling OK threshold.
18 colours palette available.
Max threshold signalling colour
Colour selection for signalling MAX threshold.
18 colours palette available.
Gradient
Enabling / Disabling filling effect “Gradient”
type.
Background colour
Colour selection of a bargraph background.
18 colours palette available.
Frame colour
Colour selection of bargraph frame.
18 colours palette available.
Means of operation:
• The bargraph consists of 8 red fields and three green fields.
• The green fields signal weighments between MIN and MAX
threshold, where:
MIN = the minimum threshold of acceptable weighment - LO
MAX = the maximum threshold of acceptable weighment - HI
• If a measurement is over the MIN (to the value of 1/3 of MIN-MAX) the
green field with a triangle on the left is visible. If the measurement is
between 1/3 and 2/3 of MIN-MAX the rectangular green field is visible.
If the measurement is between 2/3 of MIN-MAX and MAX a green field
with a triangle on the right is visible.
• If the mass value is below the MIN threshold red fields with red arrows
on the left are visible. The lower mass value the more red arrows are
visible.
