RL78/G10 CHAPTER 6 TIMER ARRAY UNIT
R01UH0384EJ0311 Rev. 3.11 107
Dec 22, 2016

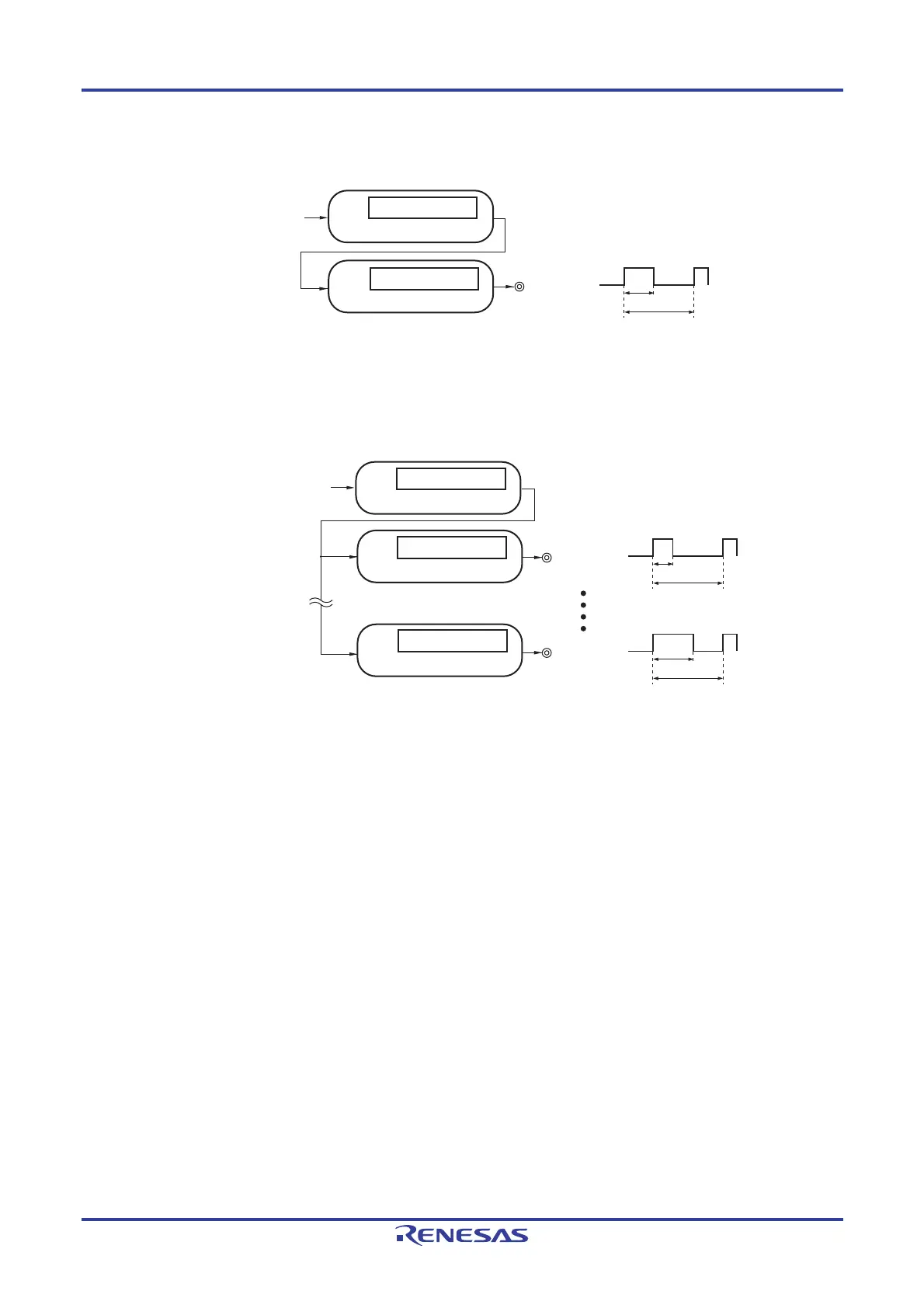

(3) PWM (Pulse Width Modulation) output function
Two channels are used as a set to generate a pulse with a specified period and a specified duty factor.
Operation clock
Duty
Cycle
Compare operation
Compare operation
Channel n (master)
Channel p (slave)
Note
Timer output
(TO0p)
Interrupt request signal
(INTTM0n)
(4) Multiple PWM (Pulse Width Modulation) output function (16-pin products only)
By extending the PWM function and using one master channel and two or more slave channels, up to three types
of PWM signals that have a specific period and a specified duty factor can be generated.
Duty
Period
Interrupt request signal
(INTTM0n)
Duty
Period
Channel n (master)
Channel p (slave)
Note
Channel q (slave)
Note
Operation clock
Compare operation
Compare operation
Compare operation
Timer output
(TO0p)
Timer output
(TO0q)
Note This operation can be obtained with the lower 8-bit timer of channel 1 or 3.
Caution There are several rules for using the simultaneous channel operation function.
For details, see 6.4.1 Basic rules of simultaneous channel operation function.
Remark n: Channel number
n = 0 (for 10-pin products); n = 0, 2 (for 16-pin products)
p, q: Slave channel number (0 < p < q ≤ 3)
