RL78/G10 CHAPTER 6 TIMER ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 199

Dec 22, 2016

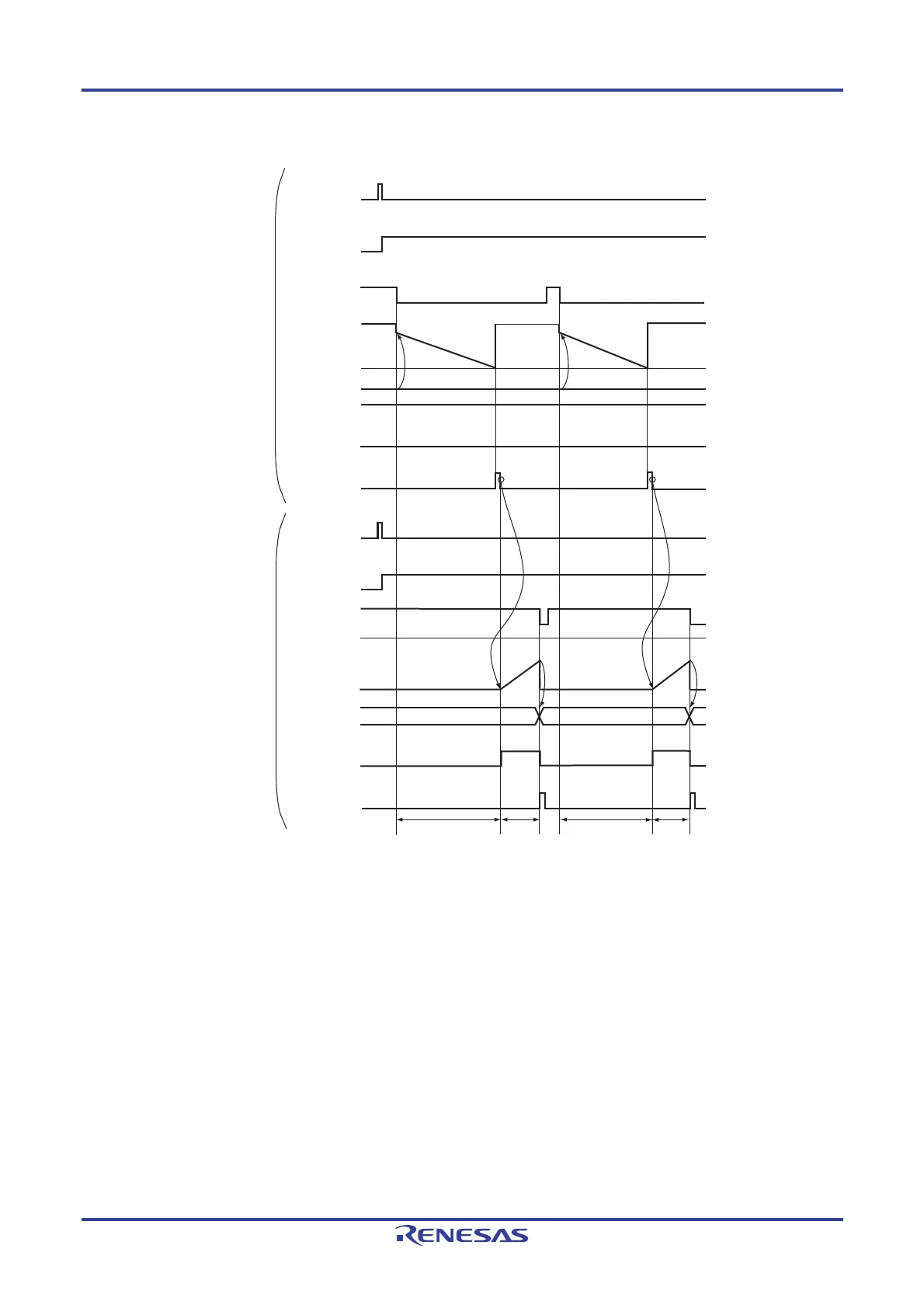

Figure 6-70. Example of Basic Timing of Operation for Two-channel Input with One-shot Pulse Output Function

TE0n

TDR0n

TCR0n

TO0n

INTTM0n

0000H

TS0p

TE0p

TDR0p

TCR0p

TO0p

INTTM0p

0000H

b+1 a+2

FFFFH

TI0n

TS0n

Master

channel

Slave

channel

TI0p

0000H

b+1a+2

Remarks 1. n: Master channel number (n = 0, 2)

p: Slave channel number (p = 3)

2. TS0n, TS0p: Bit n, p of timer channel start register 0 (TS0)

TE0n, TE0p: Bit n, p of timer channel enable status register 0 (TE0)

TI0n, TI0p: TI0n and TI0p pins input signal

TCR0n, TCR0p: Timer count registers 0n, 0p (TCR0n, TCR0p)

TDR0n, TDR0p: Timer data registers 0n, 0p (TDR0n, TDR0p)

TO0n, TO0p: TO0n and TO0p pins output signal
