RL78/G10 CHAPTER 10 A/D CONVERTER

R01UH0384EJ0311 Rev. 3.11 254

Dec 22, 2016

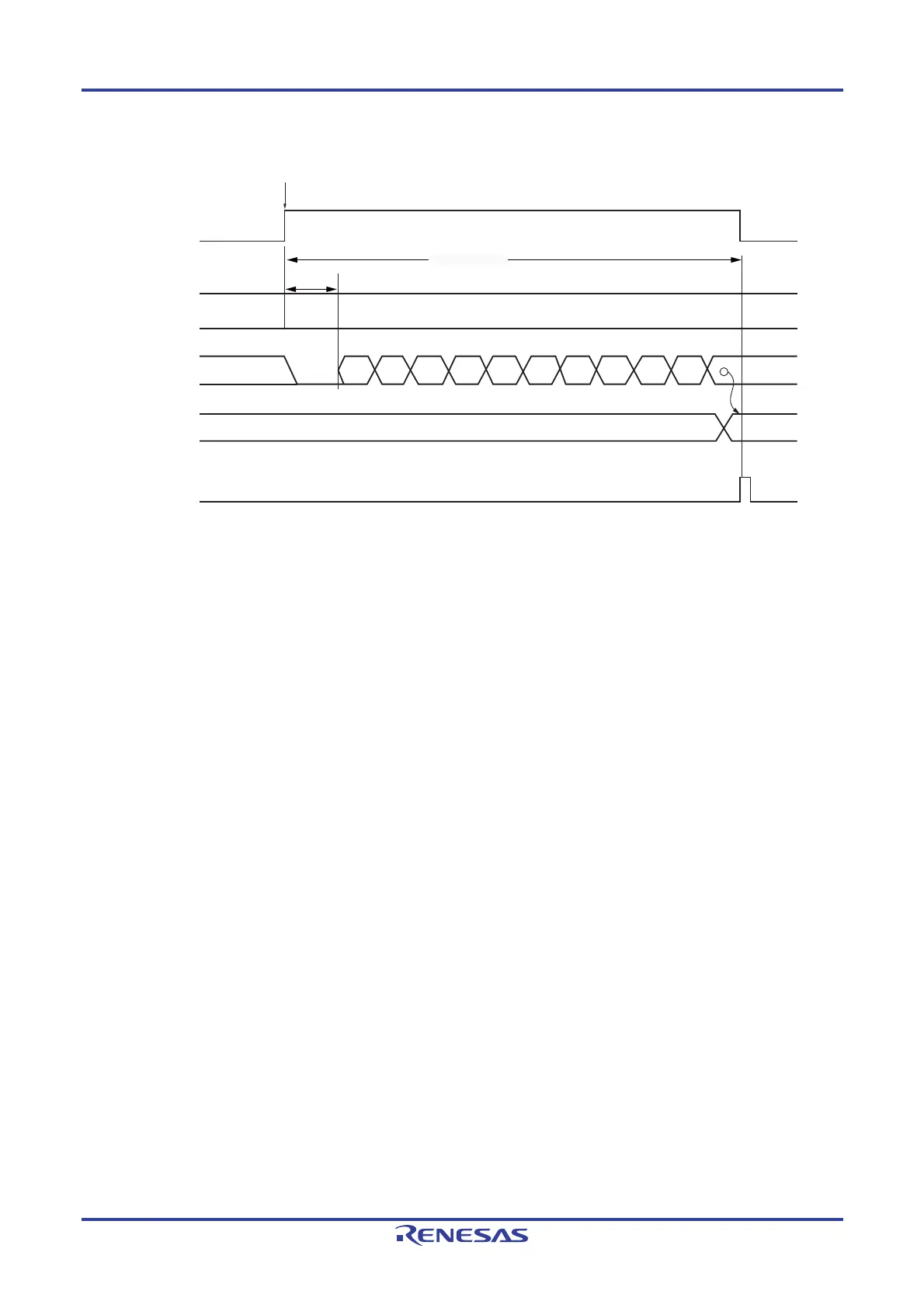

Figure 10-12. Conversion Operation of A/D Converter

1 is written to ADCS

ADCS

Sampling

time

A/D converter

operation

Conversion

standby

Sampling

A/D conversion

Conversion

standby

Conversion

result

Conversion

result

Undefined

SAR

DCRH, ADCRL

INT

Conversion time

A/D conversion is performed once when the bit 7 (ADCS) of the A/D converter mode register 0 (ADM0) is set to 1 by

software. The ADCS bit is automatically cleared to 0 after A/D conversion ends.

Reset signal generation clears the A/D conversion result register (ADCRH, ADCRL) to 00H.
