RL78/G10 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 341

Dec 22, 2016

(3) Processing flow (in single-transmission mode)

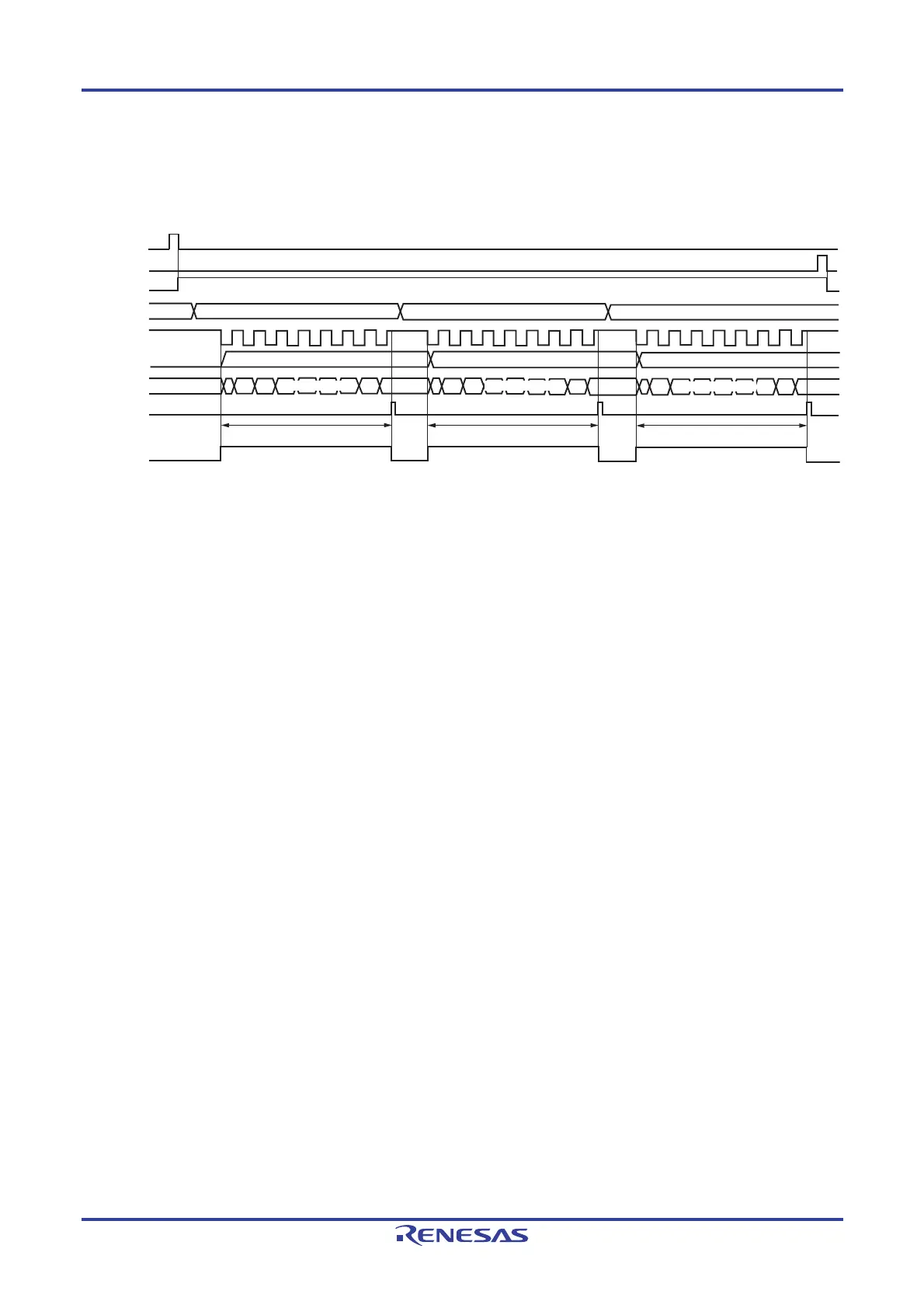

Figure 12-50. Timing Chart of Slave Transmission (in Single-Transmission Mode)

(Type 1: DAP0n = 0, CKP0n = 0)

SS0n

SE0n

SDR0nL

SCKp pin

SOp pin

INTCSIp

TSF0n

ST0n

Shift

Transmit data 1

Transmit data 2 Transmit data 3

Transmit data 3

Transmit data 2

Transmit data 1

Shift operation Shift operation

Shift operation

Data transmissionData transmissionData transmission

Remark n = 0 , 1, p: CSI number (p = 00, 01)
