RL78/G10 CHAPTER 12 SERIAL ARRAY UNIT

R01UH0384EJ0311 Rev. 3.11 358

Dec 22, 2016

(3) Processing flow (in single-transmission/reception mode)

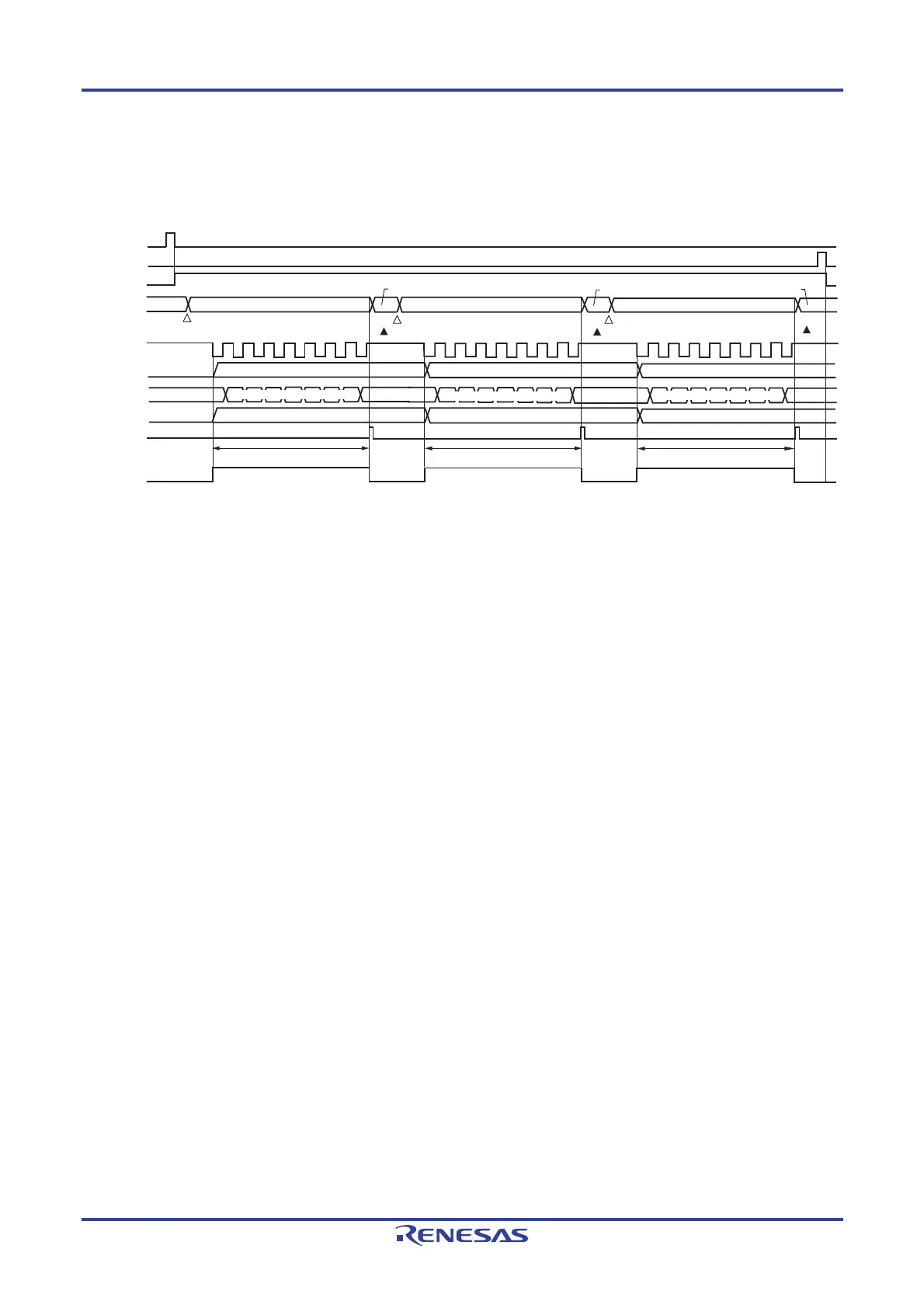

Figure 12-64. Timing Chart of Slave Transmission/Reception (in Single-Transmission/Reception Mode)

(Type 1: DAP0n = 0, CKP0n = 0)

SS0n

SE0n

SDR0nL

SCKp pin

SIp pin

INTCSIp

TSF0n

Write

SOp

ST0n

Shift

Transmit data 1

Transmit data 2

Transmit data 3

Receive data 3Receive data 2Receive data 1

Read

Receive data 1

Receive data 2

Receive data 3

Reception & shift operation

Transmit data 1

Transmit data 2

Transmit data 3

Data transmission/reception

Remark n = 0, 1, p: CSI number (p = 00, 01)
