(4) Processing flow (in continuous transmission/reception mode)

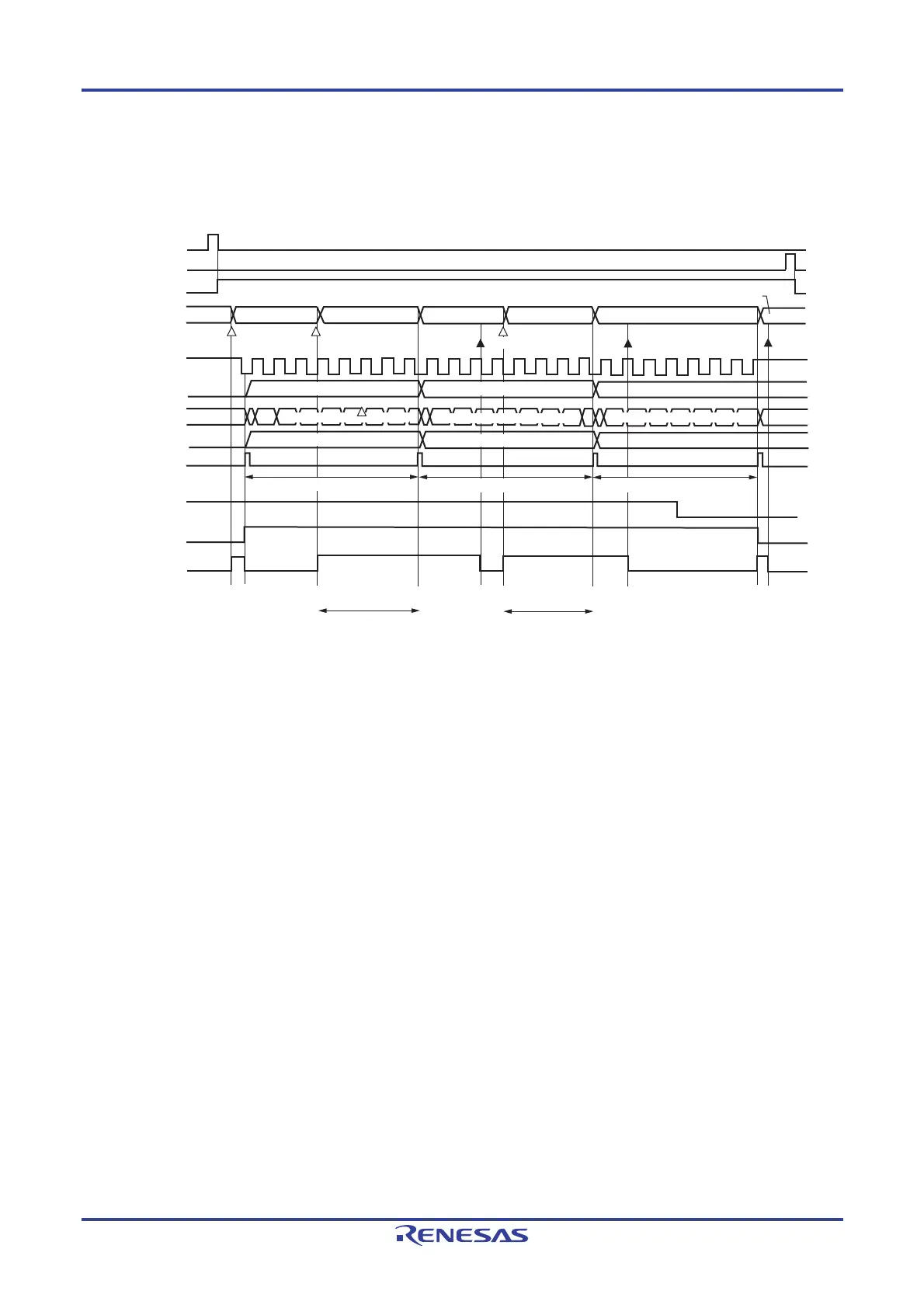

Figure 12-66. Timing Chart of Slave Transmission/Reception (in Continuous Transmission/Reception Mode)
(Type 1: DAP0n = 0, CKP0n = 0)
SS0n
SE0n
SDR0nL
SCKp pin
SIp pin
INTCSIp
TSF0n
Write
Write
SOp pin
BFF0n
<8>
Write
MD0n0
ST0n
Transmit data 1 Transmit data 2 Transmit data 3Receive data 1 Receive data 2
Receive data 3
Receive data 1 Receive data 2
Receive data 3
Transmit data 1
Transmit data 2 Transmit data 3
Data transmission/reception
Data transmission/reception
Data transmission/reception
<1>
<2> <2> <2><3> <3> <3><4> <4>
<5>
<6> <7>
Note 1
Note 2
Note 2
Read
Read
Read
Reception & shift operation
Reception & shift operation
Reception & shift operation
Shift
register 0n
Notes 1. If transmit data is written to the SDR0nL register while the BFF0n bit of serial status register 0n (SSR0n)
is 1 (valid data is stored in serial data register 0n (SDR0nL)), the transmit data is overwritten.
2. The transmit data can be read by reading the SDR0nL register during this period. At this time, the
transfer operation is not affected.
Caution The MD0n0 bit of serial mode register 0n (SMR0nL) can be rewritten even during operation.
However, rewrite it before transfer of the last bit is started, so that it has been rewritten before
the transfer end interrupt of the last transmit data.
Remarks 1. <1> to <8> in the figure correspond to <1> to <8> in Figure 12-67 Flowchart of Slave
Transmission/Reception (in Continuous Transmission/Reception Mode).
2. n = 0, 1, p: CSI number (p = 00, 01)
