You can alter the work area, without changing the view, to temporarily:
• hide the axes. Any graphs or objects remain displayed on the
work area.
• hide the entry line.
• hide the scale.
• resize the axes using the zoom tools or by dragging tic marks.
To display more of the plane geometry area, pan the screen.
To remove the analytic window from the work area
1. From the View menu, select Hide Analytic Window .
Object behavior in different views
When you create an object in the graph area, it is called an analytic
object, and all points of the object reside on the graph plane. When you
change the axes scale, you automatically affect the appearance of the
object. If you calculate a value associated with the object such as the
area, only generic units are assigned (u for unit). These objects remain
associated with the coordinate plane until you delete them or redefine
them to the plane geometry area. When working with a modeling view
work area, you cannot move an analytic object onto the plane geometry
area.
Graphing
area
Plane
Geometry
area

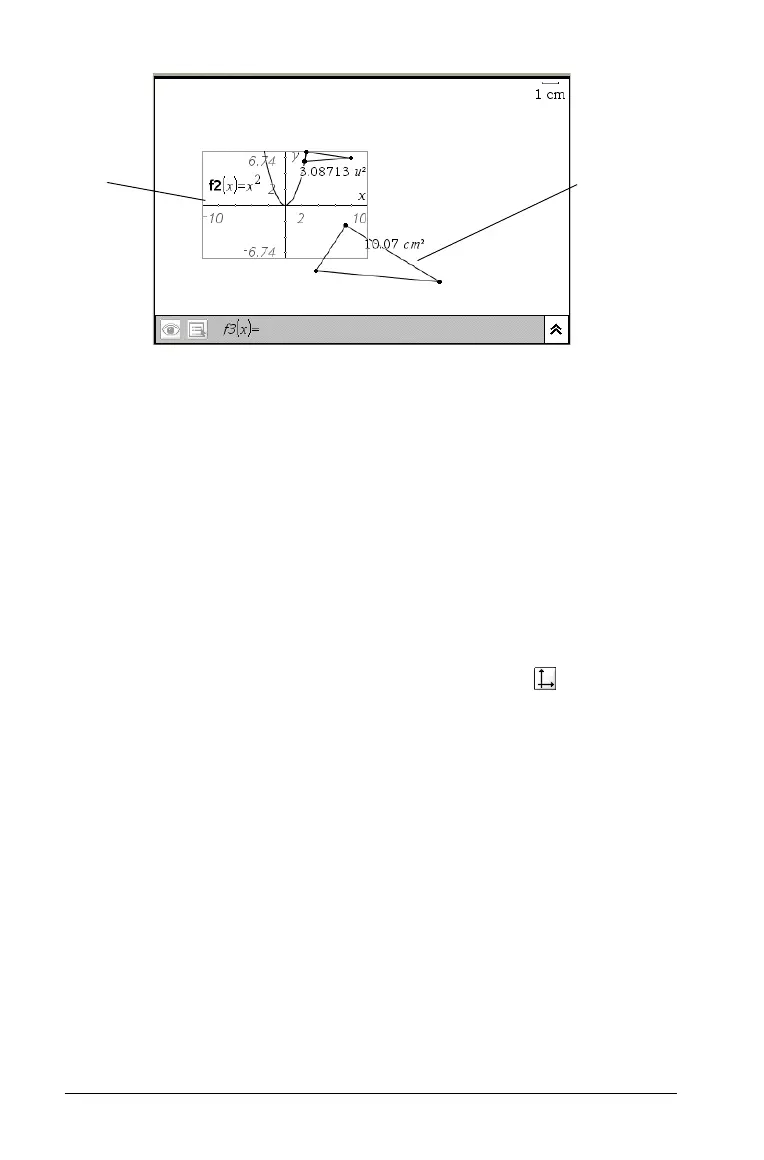

Modeling view - shows the previous two views
and the work done on both.
