Waters Autospec Premier - Page 165

Source maintenance 7-7

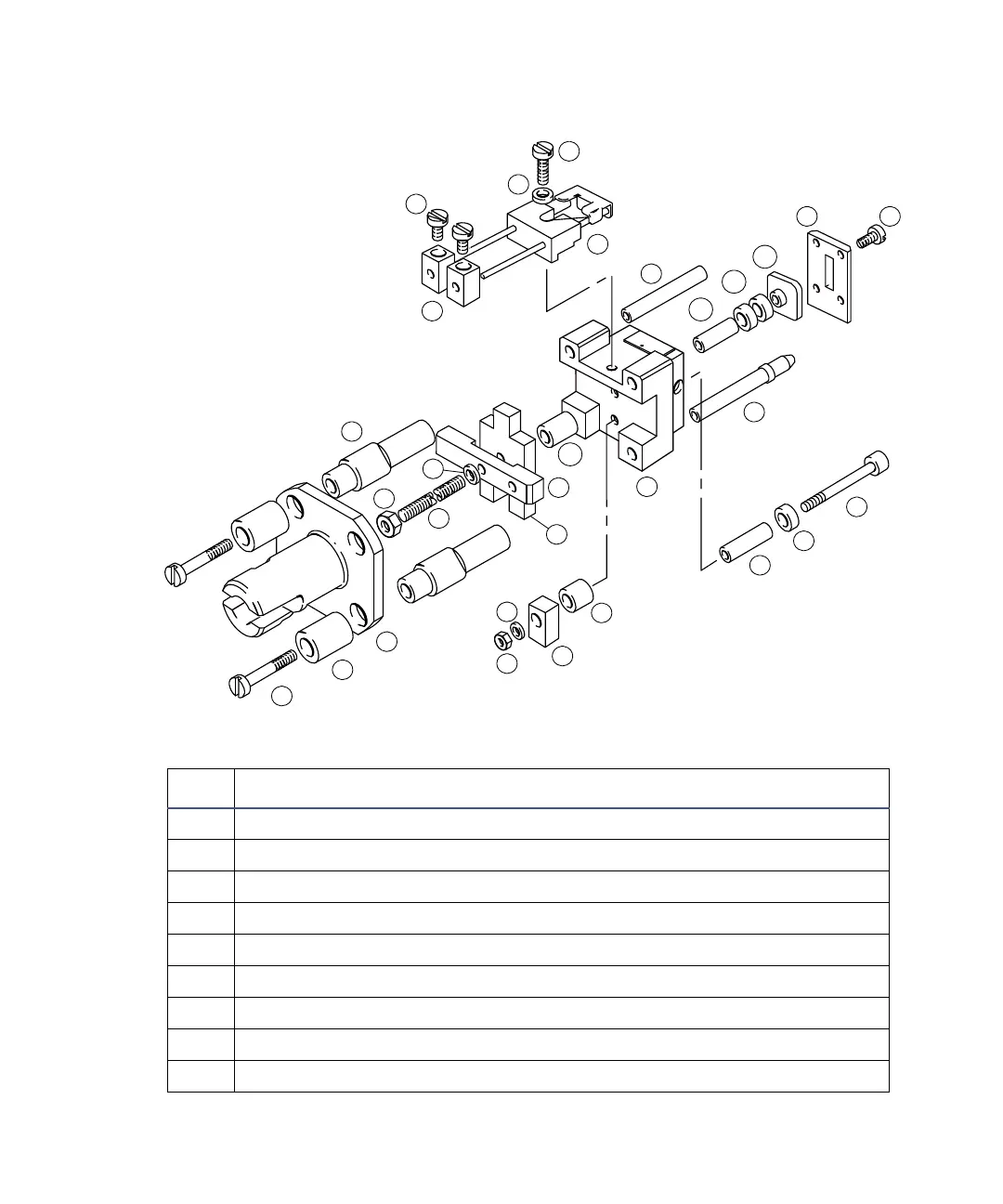

Inner source chamber assembly components
Key to inner source chamber assembly components
Item Description
A Ion exit plate
B Ion exit plate securing screw
C Filament terminal block
D Filament terminal block securing screw
EFilament
F Filament securing screw
G Washer
H Bayonet support
I Bayonet support securing screw
AD
A
Z
B
C
D
AC
E
F
G
H
J
I
K
M
N
P
Q
R
S
T
U
O
V
W
X
Y
AB
AA
L
