Source maintenance 7-13

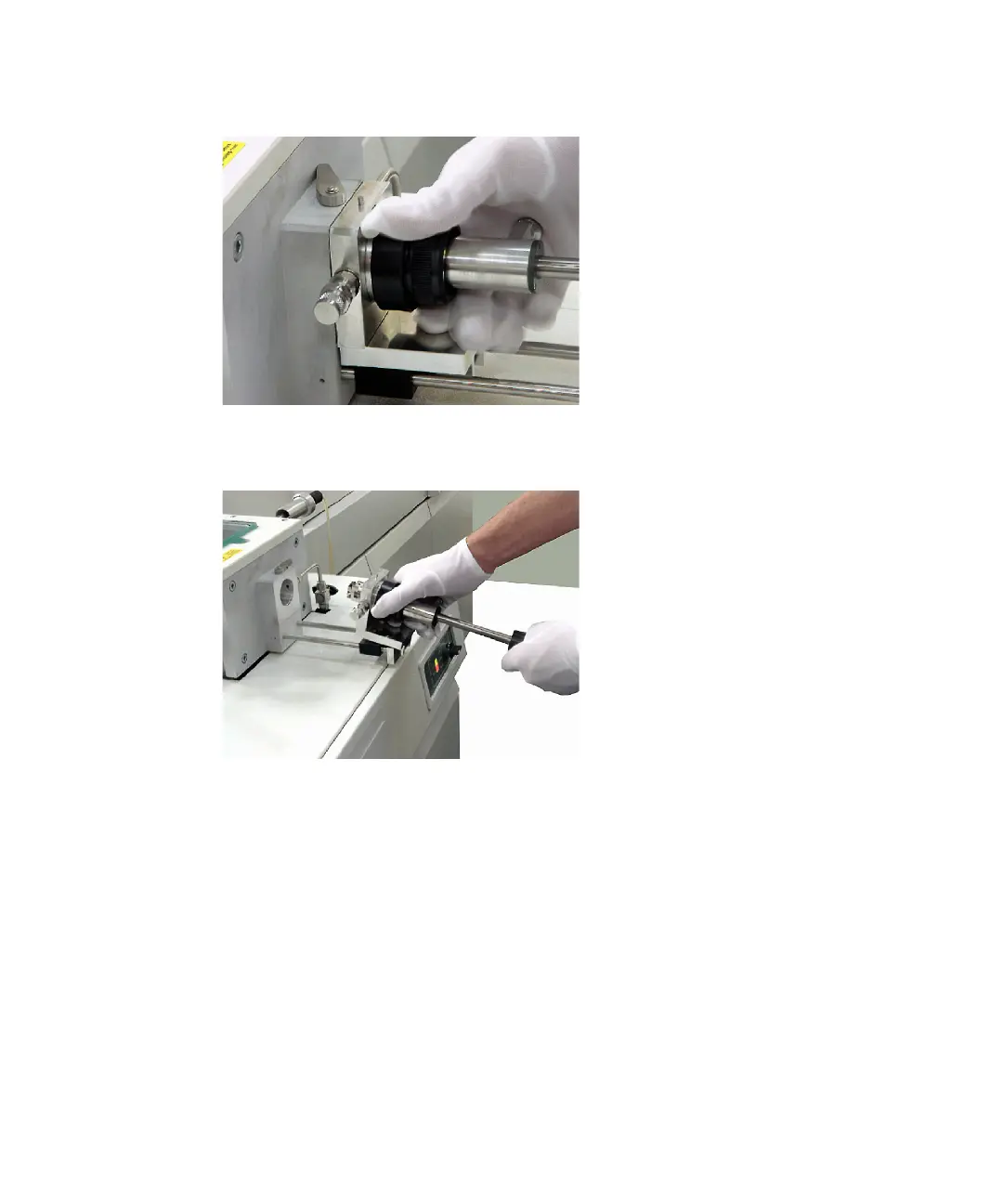

11. Hold the source lock slider assembly collar.

12. While holding the lock slider assembly and source handle, withdraw the

source lock slider until it reaches its stop.
