Xerox PHASER 6010 Service Manual

4-38 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Tes t Pr int
■ TestPatASIC[IOT] Prints the selected test print. For
information on the test prints, see
“WorkCentre 6015 MFP Test Prints” on
page 5-38.
■ TestPatLPHY[IOT]
■ Te s t Pa t L P H M [ I O T ]
■ Te s t Pa t L P H C [ I O T ]
■ Te s t Pa t L P H K [ I O T ]
Parameter Reads/writes the parameter values, errors, and life counter values
stored in the printer.
NOTE Print the parameter list using the Print function found in the Parameter Menu
before changing the registration values.
Regi Value
X Margin Y, M, C, K ■ -137 to 137 Adjusts registration in the feed
direction.
Y Margin Y, M, C, K
■ -3780 to 3780 Adjusts registration in the scan
direction.
Skew Y, M, C, K
■ -630 to 630 Adjusts the skew so that the image is
parallel with both sides of the paper.

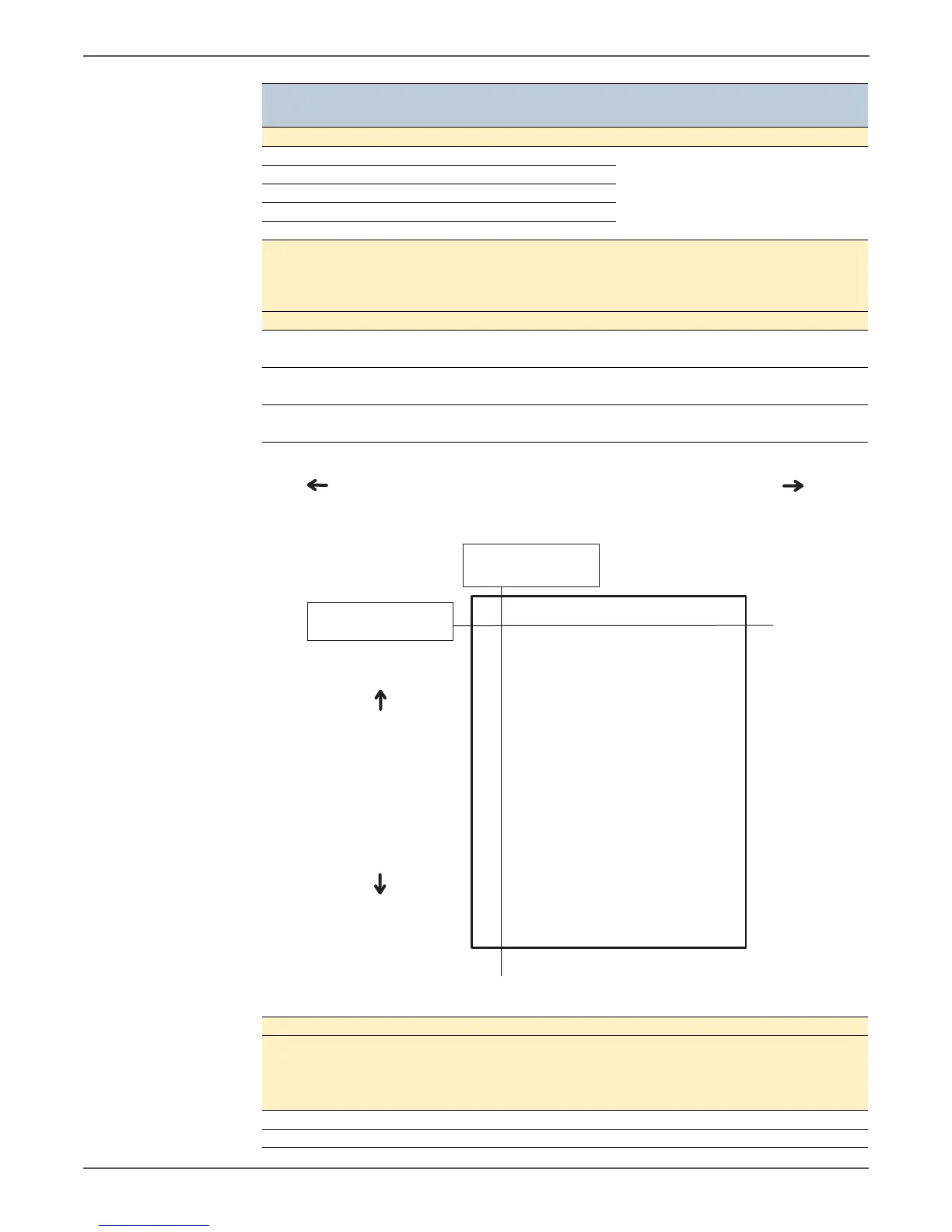

See the following illustration for additional explanation.
Life
Counter Name Value
These counter values are for
reference only. Do not use as
the official value.
M/C Total PV 30000
M/C FC PV -
Tes t
Control Panel
(WorkCentre 6015 MFP)
Test Description
Shifts the print area in this
direction by reducing the value.
Shifts the print area in
this direction by reducing
the value.
Shifts the print area in
this direction by
increasing the value.
Shifts the print area in this
direction by increasing the value.
Y Margin Y, M, C, K
X Margin Y, M, C, K
Image Side
Default
Value
Default
Value
s6000-229

Xerox PHASER 6010 Specifications

General

Print Technology	Laser
Print Speed	Up to 12 ppm color / 15 ppm black
Print Resolution	1200 x 2400 dpi
Monthly Duty Cycle	Up to 30, 000 pages
Standard Paper Capacity	150 sheets
Memory	128 MB
Paper Output Capacity	100 sheets
Duplex Printing	Manual
Maximum Paper Capacity	150 sheets
Supported Operating Systems	Windows, Mac OS, Linux
Connectivity	USB 2.0
Weight	24.3 lbs
