Xerox PHASER 6010 Service Manual

4-54 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Troubleshooting
Feed Solenoid
The Feed Roller rotates when the DO-0 (Main Motor) and the DO-9 (Feed Solenoid)
tests are executed simultaneously.
1. Enter Service Diagnostics (page 4-11).
2. Remove the Bypass Tray.
3. Run the Main Motor Full and Feed Solenoid tests: go to Printer > IOT Diag >
Digital Output > DO-0 and press OK, and then scroll down to DO-9 and press
OK.
4. Check that the Feed Roller rotates.
5. Press the Stop button to stop the Feed Solenoid test.
6. Use the Down Arrow to scroll to the motor test and press Stop to stop the
motor test.
7. Replace the Bypass Tray.

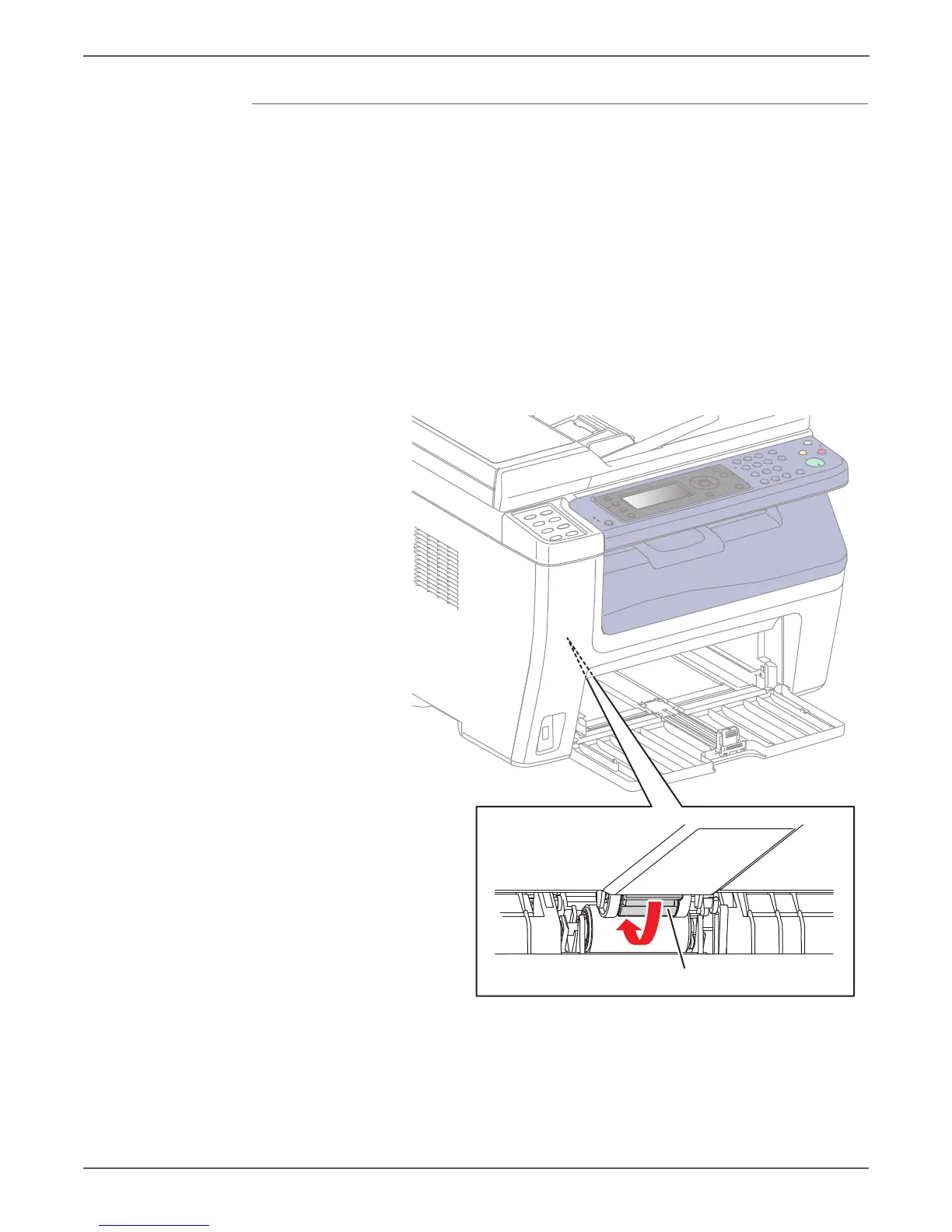

s6015-080
Feed Roller
