8-112 Xerox Internal Use Only Phaser 6000/6010 and WC 6015 MFP
Service Parts Disassembly

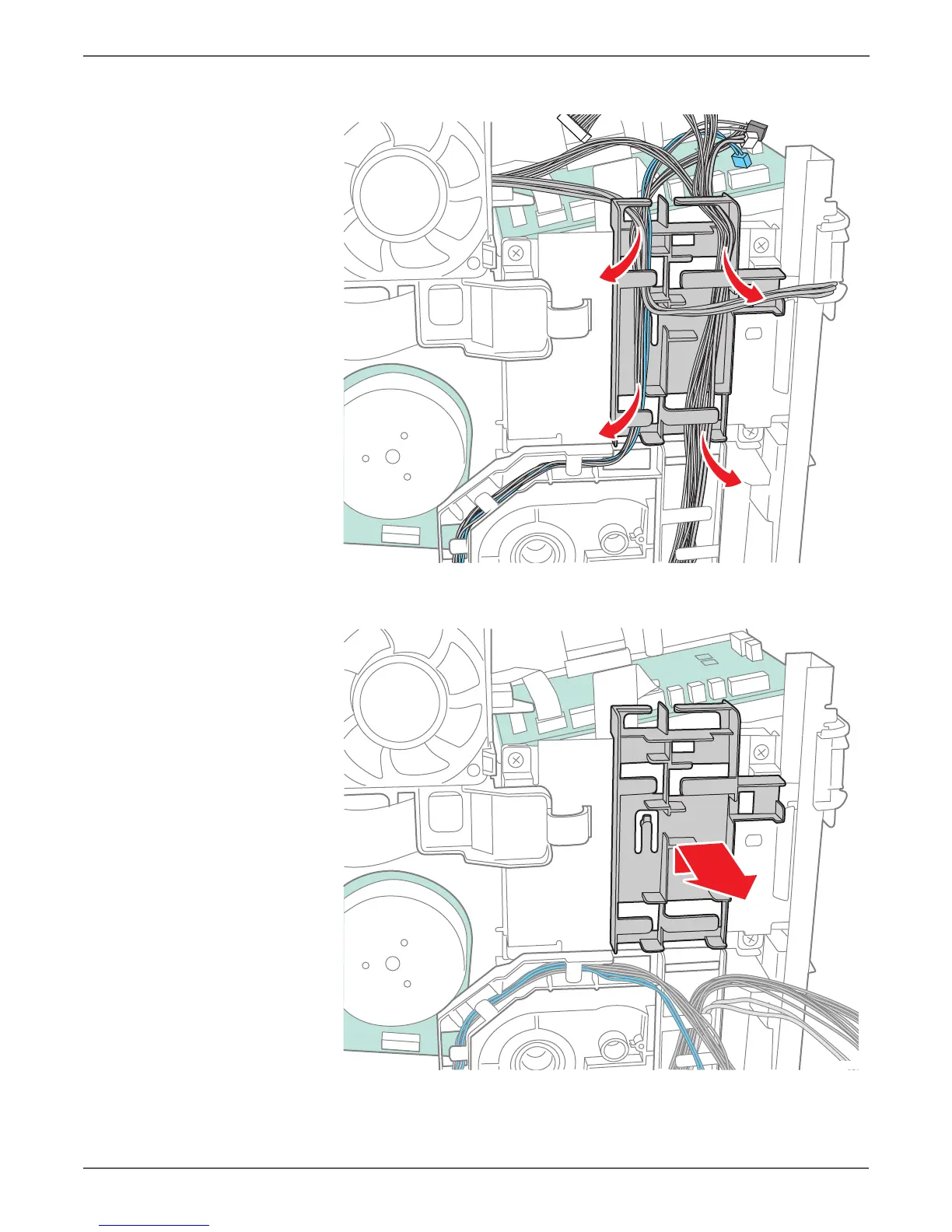

9. Release the harness from the drive harness guide.
10. Release the hook, and remove the drive harness guide from the printer.
s6000-219
s6000-220
